• Four-channel automotive oscilloscope suitable for professional applications.
• Works in conjunction with a MaxiSys® Model No's MS905 and MS908 Tablets to provide a powerful diagnostic tool.
• Powered directly from a USB port, with no need for batteries or power leads, making it versatile and portable.
• The 4-channel function allows multiple components to be compared simultaneously.

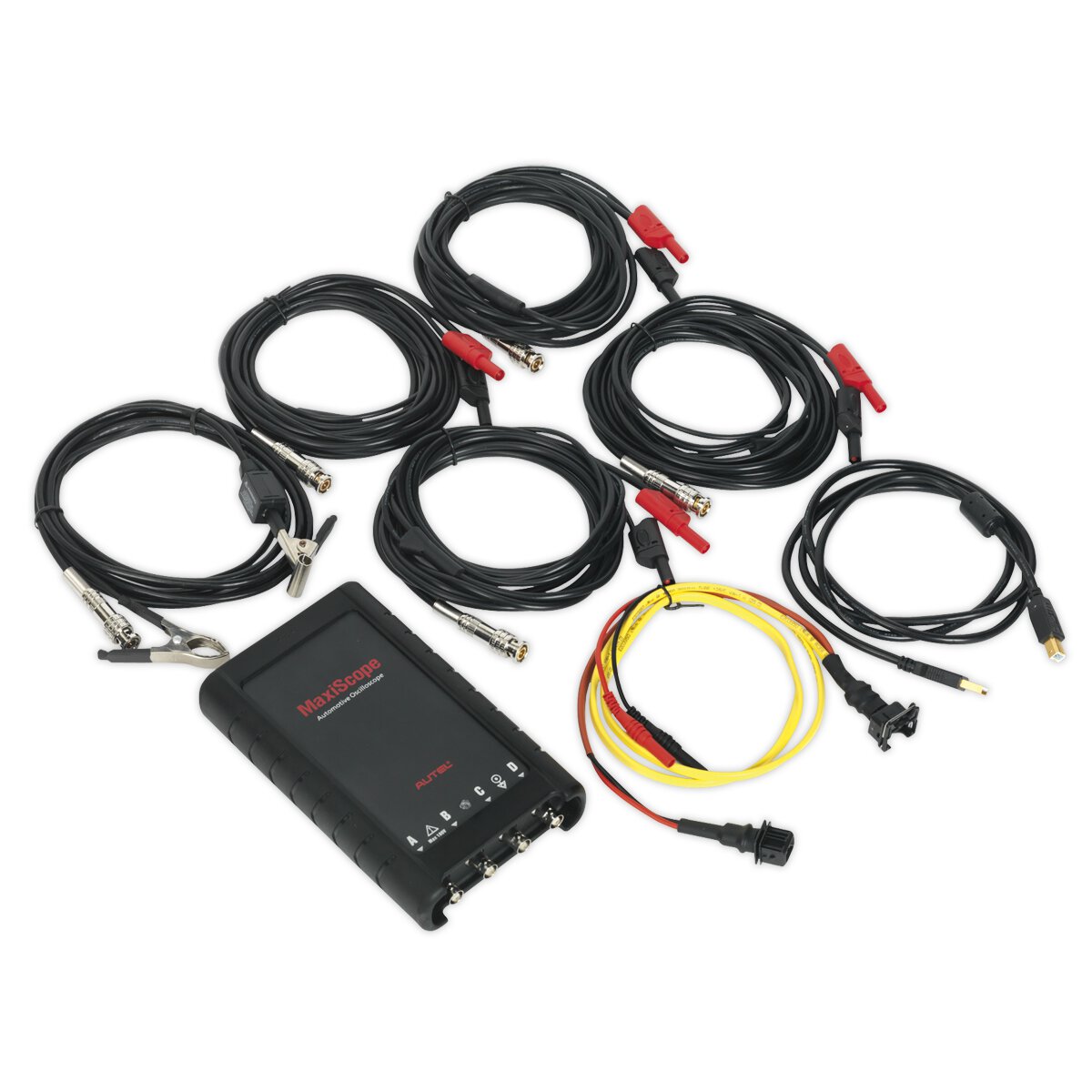

• The scope is supplied with a wide selection of automotive type test leads, connectors and probes.

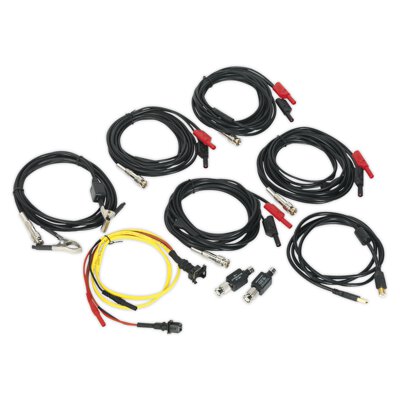

• Accessories (supplied): 1.5m USB Cable, 3m Screened Test Lead (x4), Secondary Ignition Pickup, 2-Pin Breakout Lead, Attenuators 20:1 (x2), Large Crocodile Clip Set (Pair), Small Crocodile Clip Set (Pair), Acupuncture Probe Set, Multimeter Probes (Pair).
• PC software can be downloaded from the Sealey or Autel website.

Warranty: 1 year

Model No MP408
Brand: Autel
Nett Weight: 1.45kg
Accessories (supplied): 1.5m USB Cable, 3m Screened Test Lead (x4), Secondary Ignition Pickup, 2-Pin Breakout Lead, Attenuators 20:1 (x2), Large Crocodile Clip Set (Pair), Small Crocodile Clip Set (Pair), Acupuncture Probe Set, Multimeter Probes (Pair)
Input:
Maximum Sample Rate: 80MS/s (Single Channel), 20MS/s (Multiple Channels)
Bandwidth: 20MHz
Input Range: 50mV - 100V (11 ranges)
Coupling: AC/DC
Impedance: 1MΩ
DC Accuracy: 1%
Input Protection: 200V
Timebase Range: 100ns/div - 1000s/div
Buffer Size: 32M shared on active channels
Sensitivity: 10mV/div - 20V/div
Trigger Type: Rising Edge, Falling Edge
Trigger Mode: Auto, Repeat, Single, None
Advanced Features: Math Channels, Measurements
Interface: USB 2.0
Operating System: Windows XP (SP3), Windows Vista, 7, 8 (32-bit or 64-bit)
Size: 190 x 115 x 38mm

Height: 0.18 M
Width: 0.49 M
Depth/Length: 0.08 M
Total Volume: 0.007056 Cubic M

Gross Weight: 2 Kg
Weight Plastics: 0
Weight Card Paper: 548
Weight Timber Wood: 0
Weight Metal Banding: 0
Weight Glass: 0
