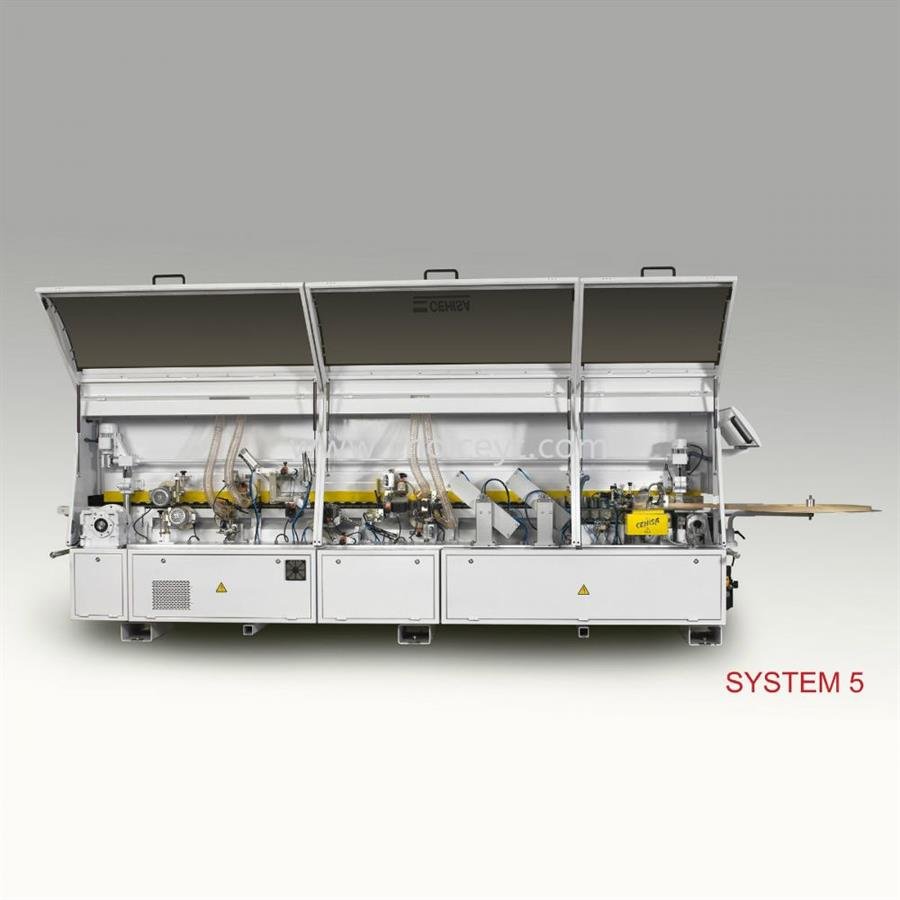

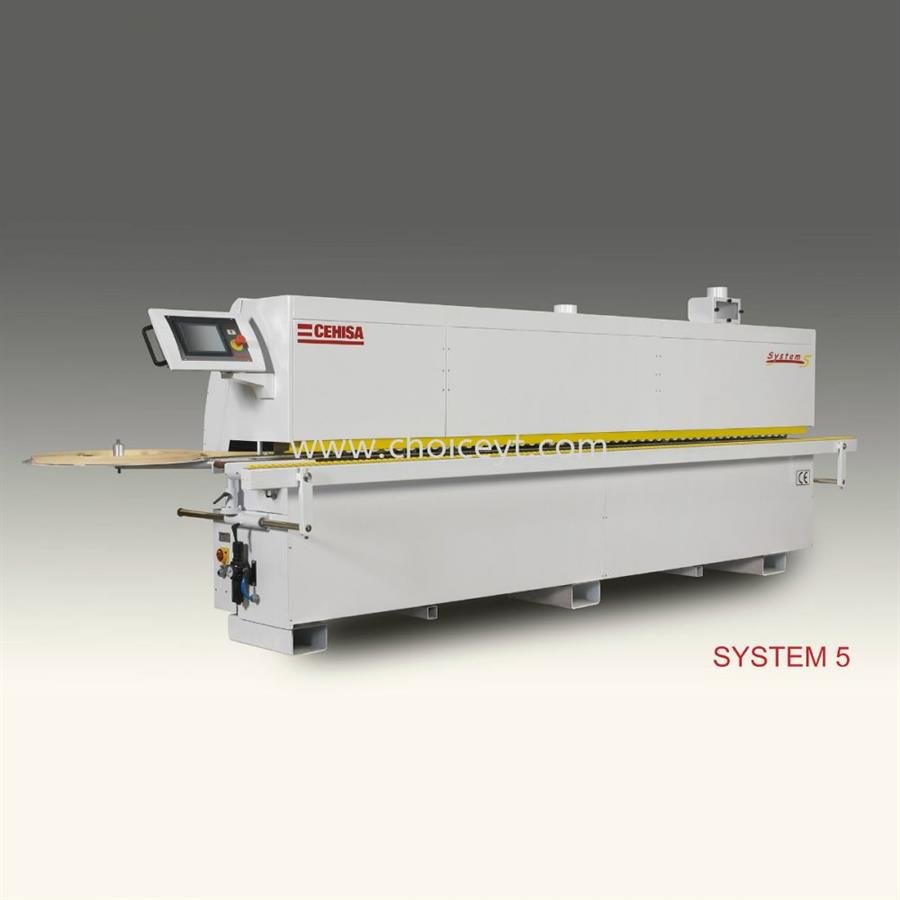

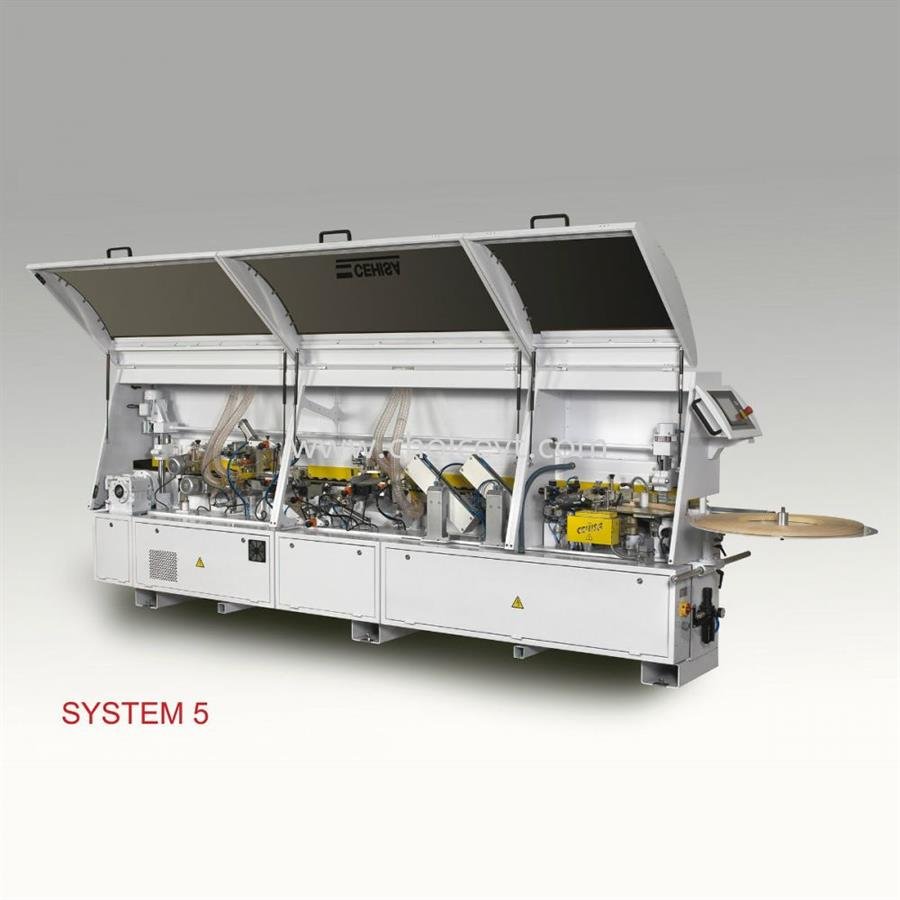

Edge Banding Machine Cehisa System Series-SYSTEM 5/5P
Ask for quote
Out of stock
Sold by
Choice Y T Sdn Bhd
Description
PRODUCT SPECIFICATIONS :-
CATEGORY : EDGEBANDERS
TYPE : UNILATERAL BANDER
RANGE : SYSTEM
MODEL 5/5P
MIN / MAX PANEL THICKNESS 8 - 60 mm
MIN / MAX THICKNESS SONGS From 0.4 to 5 mm
MIN LENGTH OF THE PANEL 120 mm
MIN WIDTH OF THE PANEL 75 mm
ROUNDING MAX THICKNESS END 50 mm
FEED RATE 9 - 14 mm / min
TOTAL INSTALLED POWER 9.6 kw
DIMENSIONS 4650x1800x1400
NET WEIGHT 1440 kg
CATEGORY : EDGEBANDERS
TYPE : UNILATERAL BANDER
RANGE : SYSTEM
MODEL 5/5P
MIN / MAX PANEL THICKNESS 8 - 60 mm
MIN / MAX THICKNESS SONGS From 0.4 to 5 mm
MIN LENGTH OF THE PANEL 120 mm
MIN WIDTH OF THE PANEL 75 mm
ROUNDING MAX THICKNESS END 50 mm
FEED RATE 9 - 14 mm / min
TOTAL INSTALLED POWER 9.6 kw
DIMENSIONS 4650x1800x1400
NET WEIGHT 1440 kg
