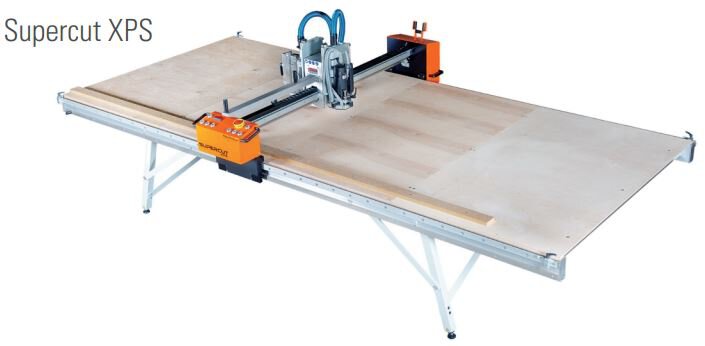

The flextos Supercut XPS models are stationary milling and sawing tables with exchangeable, modular units for processing board/panel materials. Equipped with all the technical advantages offered by the flextos Supercut model series, our Supercut XPS also scores with its expandable processing length, thus making it ideal for processing several boards/panels in one single work step.

The Supercut XPS system will be an added value for every professional drywall constructor when it comes to the economically efficient production of mouldings.

The exchangeable, modular units of our Supercut XPS system allow for most versatile operations: the individual units may be exchanged within seconds for:
- milling
- sawing
- duplicating/copy-milling

Features:

- automatic unit lifting/lowering mechanism as standard
- automatic switch-over of the extraction system to the respective unit
- reliably secure clamping for x- and y-axes
- digital measuring system in all axes
- convenient laser adjustment
- almost 100% dust extraction during the production process
Suitable materials:
All boards/panels made of mineral fiber and gypsum-based materials (such as gypsum plasterboard), wood composite materials, plastics, Alucobond, etc.

XPS 4.0
dimensions (unfolded)
length: 3,973 mm
width: 2,125 mm
height: appr. 1,235 mm
weight
table: 168 kg
gantry: 122 kg
machining dimensions (max.)
length: 3,140 mm
width: 1,370 mm
height: 60 mm
cutting depth (saw): 61 mm
connection values: 120/230 V - 50/60 Hz - 16 A


XPS 4.8

dimensions (unfolded)
length 4,820 mm
width 2,125 mm
height appr. 1,235 mm
weight
table 193 kg
gantry 122 kg
machining dimensions (max.)
length 3,910 mm
width 1,370 mm
height 60 mm
cutting depth (saw) 61 mm
connection values 120/230 V - 50/60 Hz - 16 A
