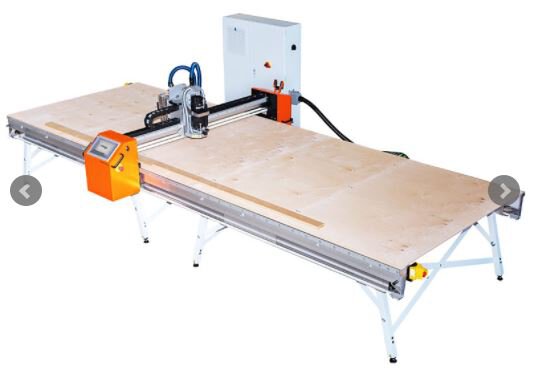

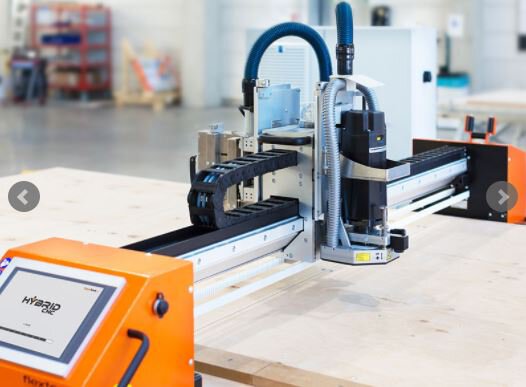

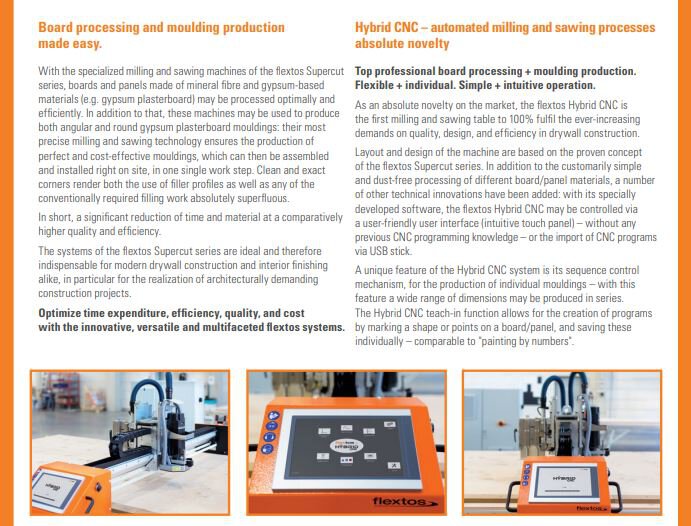

As an absolute novelty on the market, the flextos Hybrid CNC is the very first milling and sawing table to 100% fulfil the ever-increasing demands on quality, design, and efficiency in drywall construction.

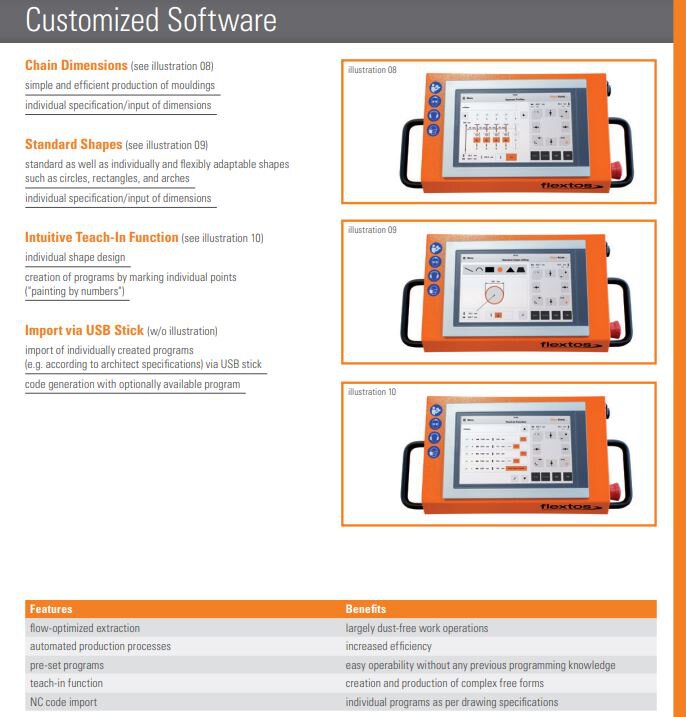

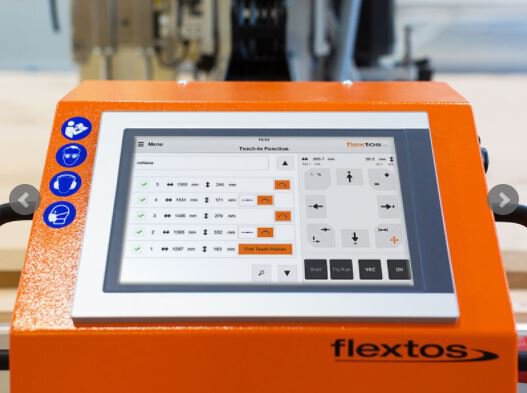

Layout and design of the machine are based on the proven concept of the flextos Supercut series. In addition to the customarily simple and dust-free processing of different board/panel materials, a number of other technical innovations have been added: with its specially developed software, the flextos Hybrid CNC may be controlled via a user-friendly user interface (intuitive touch panel) – without any previous CNC programming knowledge – or the import of CNC programs via USB stick.

Your benefits:
- semi-automatic milling and sawing function
- increased efficiency through automated production processes
- preset standard as well as individually and flexibly adaptable shapes such as circles, rectangles, and arches
- simple and efficient production of mouldings with the chain dimension/incremental measurement function
- intuitive teach-in function for designing/creating individual shapes
- import of individually created programs (e.g. according to architect specifications)
- almost 100% dust extraction during the production process
Suitable materials:
All boards/panels made of mineral fiber and gypsum-based materials (such as gypsum plasterboard), wood composite materials, plastics, Alucobond, etc.

dimensions (unfolded)
length: 5,030 mm
width: 2,245 mm
height: appr. 1,290 mm
control cabinet
length: 1,053 mm
width: 350 mm
height: 1,300 mm
weight
table: 233 kg
gantry: 135 kg
control cabinet: 130 kg
machining dimensions (max.)
length: 3,660 mm
width: 1,360 mm
height: 60 mm
cutting depth (saw): 61 mm
connection values: 480/400 V - 50 Hz/60 Hz - 16 A
drive: stepping motors
feed: max. 10 m/min at idle speed
