Description

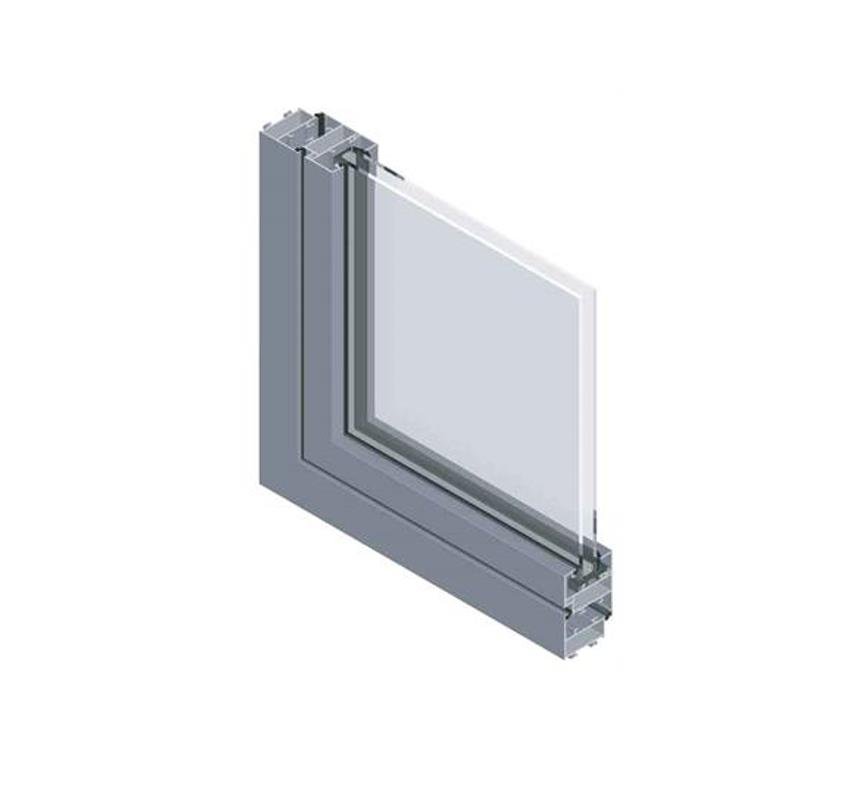

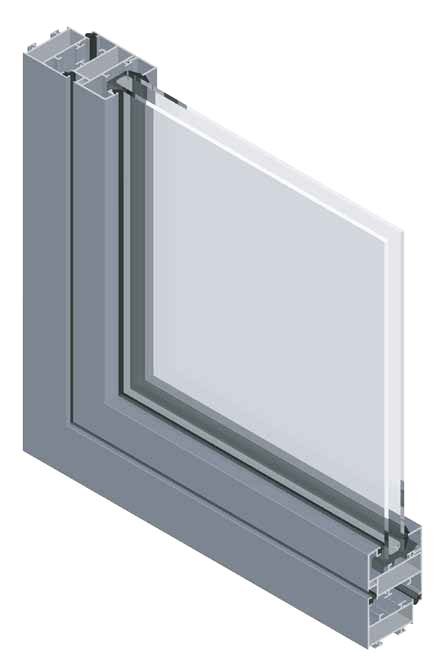

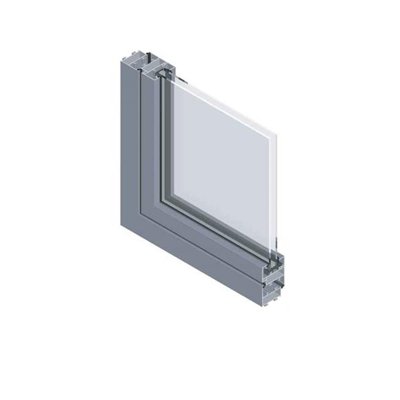

TECHNAL TOPAZE Aluminium Window System - Inward Opening Side Hung Window
Introduction :
- Aesthetic design.
- A flat face design for all types of doors and windows, in harmony with architectural trends.
- Exclusive TECHNAL® finishes on profiles and accessories.
- Glass surface area: less visible aluminium for more natural light.
Variety of applications :
- Windows and patio doors.
- Single and double sash.
- Inward-opening sashes: patio door, turn/tilt, bottom-hung.
- Composite frames.
Locking Mechanisms :

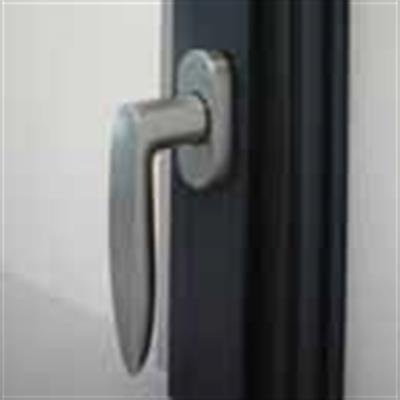

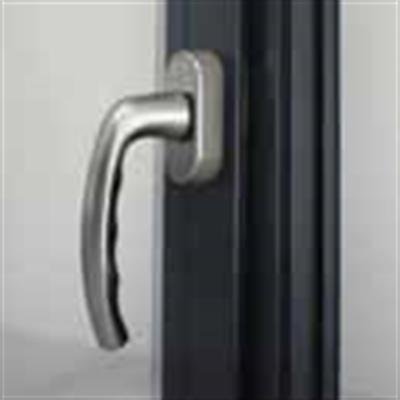

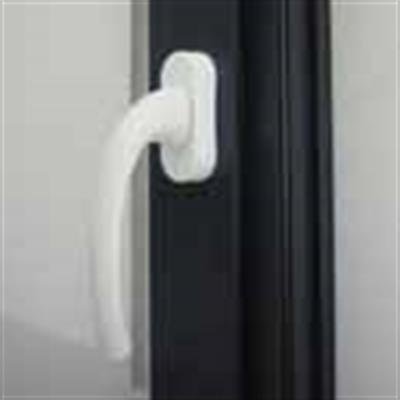

- Exclusive TECHNAL® design window handles.
- Embedded gear box allowing the use of square drive handles for all applications for a discrete appearance.
Two versions of opening sashes with interior overlap :
Glass Thickness for Topaze : 6 to 33 mm glazing.
Glass Thickness for Topaze+ : 6 to 39 mm glazing.
Glass Type : Single Glaze, Double Glaze or Laminated Glass.
Weathertightness Principle :
- Double sealing between fixed frame and opening sash by interior/exterior multi-purpose gasket with rounded corners.
- The high compressibility of the gaskets absorbs any minor production or installation tolerances and guarantees optimum sealing.
Performance :
Weather performance: tested to the EN1026 - EN1027 - EN12211 European standards.
- Air permeability: up to 600 Pa(class 4)
- Watertightness: up to 1200 Pa(class 1200A)
- Wind resistance: up to 2000 Pa(class 5)
- Acoustic: Rw (C; Ctr) ≤ 38 dBa (-1; -4), depending on glazing used.
