TECHNAL TOPAZE Aluminium Window System - Inward Opening Tilt & Turn Window

Introduction :
- Aesthetic design.
- A flat face design for all types of doors and windows, in harmony with architectural trends.
- Exclusive TECHNAL® finishes on profiles and accessories.
- Glass surface area: less visible aluminium for more natural light.

Variety of applications :
- Windows and patio doors.
- Single and double sash.
- Composite frames.

Three Opening Sash Design :
- Opening sash flat and flush on external face. Square beads on interior
- Opening sash rounded and flush on external face. Round beads on interior
- Basic opening sash without flush external face. Square beads on interior

Locking Mechanisms :

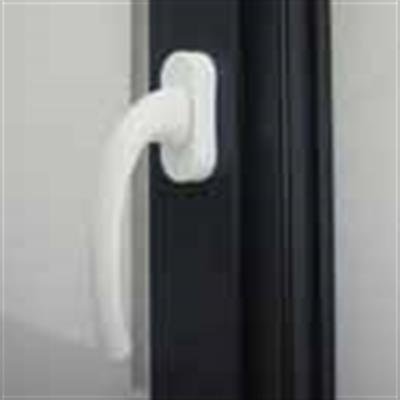

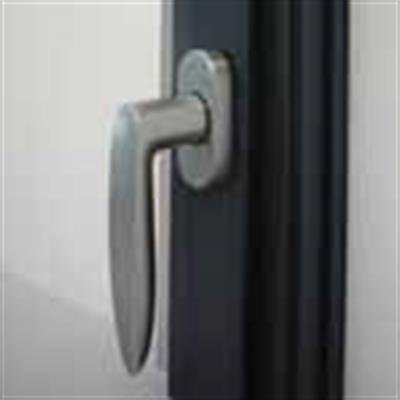

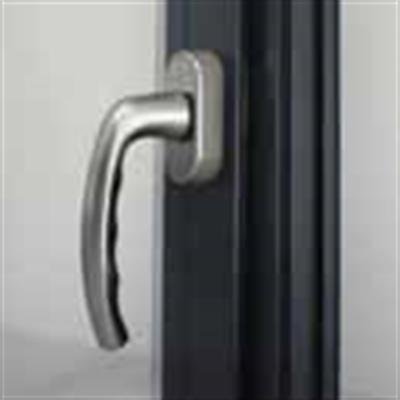

- Exclusive TECHNAL® design window handles.
- Embedded gear box allowing the use of square drive handles for all applications for a discrete appearance.

Glass thickness Capacity : from 6 to 33 mm.

Weathertightness Principle :
- Double sealing between fixed frame and opening sash by interior/exterior multi-purpose gasket with rounded corners.
- The high compressibility of the gaskets absorbs any minor production or installation tolerances and guarantees optimum sealing.

Glass thickness Capacity : from 6 to 33 mm.

Performance :
Weather performance: tested to the EN1026 - EN1027 - EN12211 European standards.
- Air permeability: up to 600 Pa(class 4)
- Watertightness: up to 1200 Pa(class 1200A)
- Wind resistance: up to 2000 Pa(class 5)
- Acoustic: Rw (C; Ctr) ≤ 38 dBa (-1; -4), depending on glazing used.
