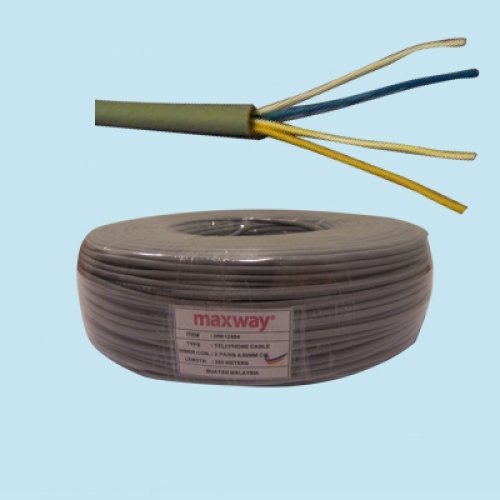

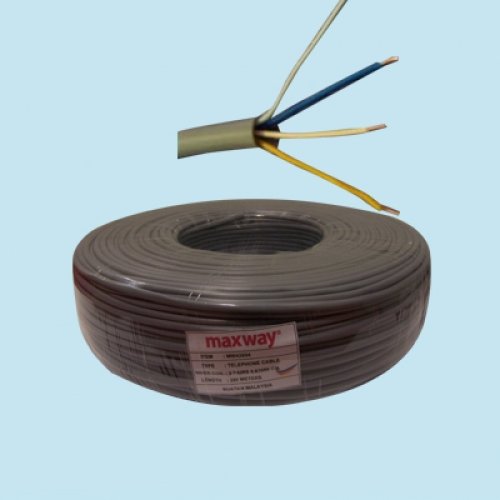

Maxway 2 Pairs 0.5mm Tel Cable (Buatan Malaysia)
Ask for quote
Out of stock
Sold by
Maxway Technologies Sdn. Bhd.
Description

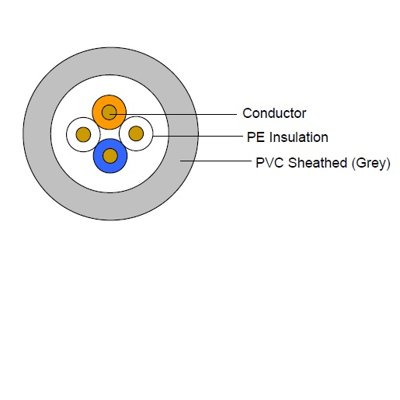

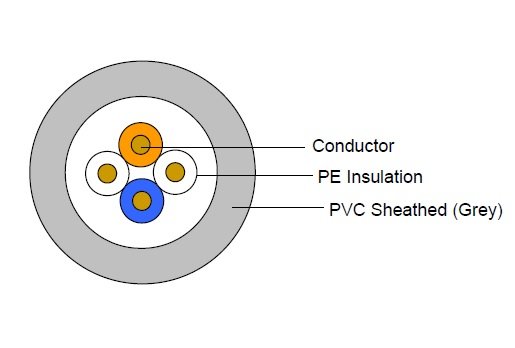

-CONSTRUCTION DATA-
Conductor Size:
-Size (mm): 0.5
-Pairs No.: 4
Insulation Thickness(mm): 0.25
Sheath Thickness(mm): 0.7
Norminal Diameter(mm): 4.2
Approx. Weight(Kg/km): 20
Standard Length(m): 250
-ELECTRICAL AND MECHANICAL CHRACTERISTICS-
Conductor:
Coppe Conductor Diameter:
-Nom.(mm): 0.5
-Max.(mm): 0.505
Resistance per km at 20ºC:
-Max Ave.(ohm): 89.55
-Max. 99% of cases(ohm): 91.4
Insulation Elongation: -Min.(%): 15
Mutual Capacitance pair to pair: -Max.(nF/km): 90
Capacitance Unbalance pair to pair: -Max.(pF/500m): 275
Insulation Resistance per km: -Min.(M.ohm/km): 300
Ordering Information
Part No: MW 41484
Length: 100 meter
Part No: MW 42484
Length: 250 meter
