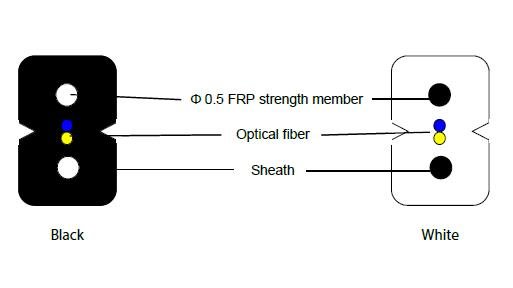

Maxway 2C 9/125µ G657A2 Indoor Fiber Optic Drop Cable (Black)
Ask for quote
Out of stock
Sold by
Maxway Technologies Sdn. Bhd.
Description
Technology specification
Part No.: MW-GJXFH-S6B
Item: Technology parameter
Cable Type: FTTH Drop Cable
Cable Specification: 3.0×2.0
Fiber color: Blue, Yellow
Fiber type: 9/125 (G.657A2)
Sheath color: Black / White
Sheath material: LSZH
Cable dimension (mm): 3.0(±0.1)*2.0(±0.1)
Cable weight (Kg/km): Approx. 8.5
Min. bending radius (mm): 10 (Static) 25 (Dynamic)
Attenuation (dB/km): ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile (N): 80
Crush resistance (N/100mm): 1000
Operation temperature (℃): -20~+80
Length: 1000meter
Note: the product is in accord with the instruction of EU RoHS
