Maxway In/Out Door Cat.6 4 Pairs Cables (PVC/PE) (P/N MWC6PVPE)
Ask for quote
Out of stock
Sold by
Maxway Technologies Sdn. Bhd.
Description

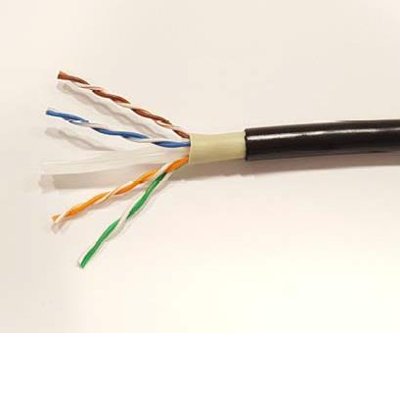

Maxway category 6 4 pairs horizontal cables have been developed to support current and next generation applications utilizing 250MHz bandwidth. These cables exceed EIA/TIA568-B.2-1 and ISO/IEC 11801 Category 6 requirements. Maxway Category 6 cables are constructed with four highly balanced twisted pairs, locked in position by a central spacer. Each pair consists of two precision engineered 23 AWG conductors to ensure low loss, high balance and minimum crosstalk performance. The four pairs are enclosed with flexible PVC jacket and outer Polyethylene jacket, this product safe to use in indoor, outdoor, commercial and residential applications ranging from fully certified structured cabling systems to home automation.
Features & Benefits
Exceeds ISO/IEC 11801 requirement.
• Fully downward compatible with Category Exceeds EIA/TIA-568-B.2-1 requirement. 5e cables and connectors, perfect for Lower Insertion Loss, Crosstalk and Return supporting today’s system operating at Loss performance ensures an improved 10Mbps, 100Mbps or 1000Mbps and SNR at the far-end resulting in cleaner allowing future growth signals, fewer errors and less down time. • Available in both horizontal and patch cables
PHYSICAL SPECIFICATIONS
Gauge : 23 AWG • Insulation Thickness : +/- 0.4 mm
Weight : 15.9kg • Operating Temperature Range : -20 to 60
Overall Diameter : +/- 7.2 mm
Inner PVC Jacket Thickness : +/- 0.50 mm
Outer Polyethylene Thickness : +/- 0.70mm

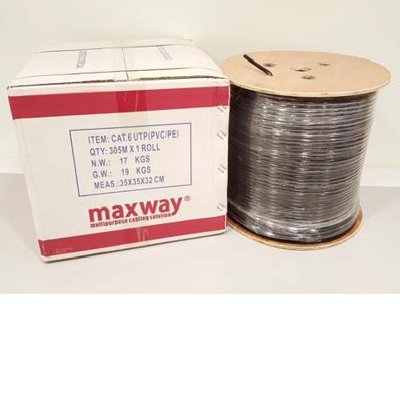

length: 305 meter
ELECTRICAL SPECIFICATIONS
Velocity of Propagation (NVP) : 0.69 • Characteristic Impedance : 100 ohm +/- 15%
DC Resistance : 9.38 ohms/100m Max. (1-250MHz)
DC Resistance Unbalance : 3% Max. • Prop. Delay (Skew) : 18ns/100m Max.
Input : 100 ohm +/- 15% (1- 100MHz) • Mutual Capacitance : 55.8 pF/m Max. Impedance : 100 ohm +/- 22% (>100-250MHz)
