Description
Product Description:

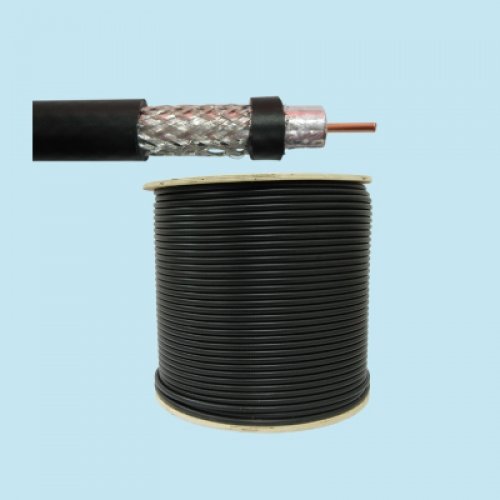

Center copper clad steel conductor, 7.11mm gas expanded polyethylene dielectric, inner shield bonded aluminum foil, outer shield of aluminum wires braid, 10.03mm PVC jacket. Cold bending from -20˚ to -40˚ Celsius, footage marked, 3.0Ghz swept tested.
Physical Dimensions:
Component | Standard Shield (mm)
Nominal Center Conductor Diameter (CCS) | 1.63
Nominal Diameter Over Dielectric (FPE) | 7.11
Nominal Diameter Over First Shield (Tape) | 7.98
Nominal Diameter Over Inner/Outer Jacket (PVC) | 10.03
Mechanical Characteristics:
Minimum Breaking Strength 365lbs. 166kgs
Electrical Characteristics:
Capacitance: 52±3.0 pf/m
Impedance: 75±3Ω
Velocity of Propagation: 85%
Screening Efficiency: 5–1000MHz > 85dB
Return Loss:-
5-470MHz >23dB
470-1000MHz >20dB
1000-2200MHz >18dB
2200-3000MHz >15dB
Attenuation [@68°F(20°)]:
-For CATV
5 MHz : 1.25
55 MHz : 3.15
83 MHz : 3.87
187 MHz : 5.74
211 MHz : 6.23
250 MHz : 6.72
300 MHz : 7.38
350 MHz : 7.94
400 MHz : 8.53
450 MHz : 9.02
500 MHz : 9.51
550 MHz : 9.97
600 MHz : 10.43
750 MHz : 11.97
865 MHz : 13.051
1000 MHz : 14.27
-For Satellite
1 MHz : 0.66
10 MHz : 1.48
50 MHz : 3.12
100 MHz : 4.43
200 MHz : 6.40
400 MHz : 9.91
800 MHz : 14.27
862 MHz : 17.03
1000 MHz : 18.34
1450 MHz : 21.95
1800 MHz : 24.51
2200 MHz : 27.20
Ordering Information:
Part Number: MW1396S
Jacketing Color: Black
Package: 300 meters on wooden spool
