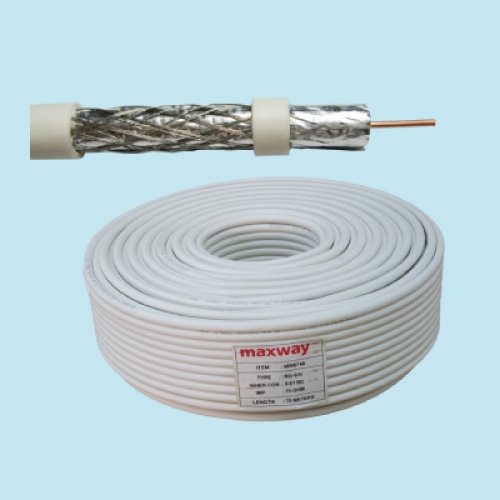

Maxway RG-6/U Coaxial Cable

Product Description:
Center copper conductor, 4.57mm gas expanded polyethylene dielectric, inner shield aluminum foil, outer shield of aluminum wires braid, 6.8mm PVC jacket. Cold bending from -20° to -40° Celsius, footage marked, 3.0Ghz swept tested.

Physical Dimensions:
Component | Standard Shield (mm)
Nominal Center Conductor Diameter (CU) | 0.8/1.02 ± 0.02
Nominal Diameter Over Dielectric (FPE) | 4.57
Nominal Diameter Over First Shield (Tape) | 4.57
Nominal Diameter Over Inner/Outer Jacket (PVC) | 6.8
Nominal Diameter Over Outer Jacket (PE) | 8.5

Mechanical Characteristics:
Minimum Breaking Strength 180lbs. 82kgs

Electrical Characteristics:
Capacitance: 52±3.0 pf/m
Impedance: 75±3Ω
Velocity of Propagation: 45% / 85%
Screening Efficiency: 5–1000MHz > 85dB
Return Loss:-
5-470MHz >23dB
470-1000MHz >20dB
1000-2200MHz >18dB
2200-3000MHz >15dB

Attenuation [@68°F(20°)]:
-For CATV
5 MHz : 1.90
55 MHz : 5.25
83 MHz : 6.40
187 MHz : 9.35
211 MHz : 10.00
250 MHz : 10.82
300 MHz : 11.64
350 MHz : 12.63
400 MHz : 13.61
450 MHz : 14.43
500 MHz : 15.09
550 MHz : 16.08
600 MHz : 16.73
750 MHz : 18.54
865 MHz : 20.01
1000 MHz : 21.49

-For Satellite
1 MHz : 0.82
10 MHz : 2.3
50 MHz : 4.6
100 MHz : 6.4
200 MHz : 8.96
400 MHz : 13.00
800 MHz : 19.00
862 MHz : 19.80
1000 MHz : 21.20
1450 MHz : 25.50
1750 MHz : 28.60
2250 MHz : 32.80
3000 MHz : 40.50

Ordering Information:
Part Number: MW6764
Jacketing Color: White
Package: 70 meters on box spool

Part Number: MW6148
Jacketing Color: White
Package: 100 meters on box spool

Part Number: MW6348
Jacketing Color: White
Package: 300 meters on wooden spool

Part Number: MW6396P
Jacketing Color: Black
Package: 300 meters on wooden spool

Part Number: MW6596P
Jacketing Color: Black
Package: 500 meters on wooden spool
