Metalworking Lathe 500mm Between Centres
| Ratings | None |
| Seller |
On Vacation
|
| Address | 9 & 11, Jalan BRP 1/4, Bukit Rahman Putra, Shah Alam |
| Tags | None |
| Stock Availability | In stock |
| Price |
RM
17,670.90
RM 19,634.40
-10%
|
Brand
SEALEY
SKU
SM27
Product Description

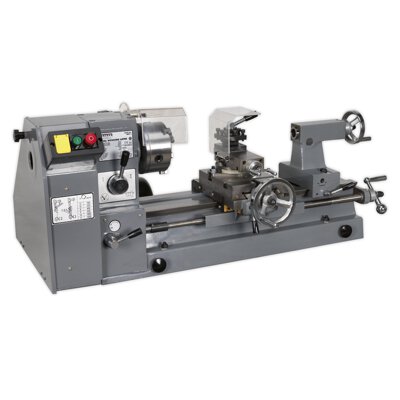

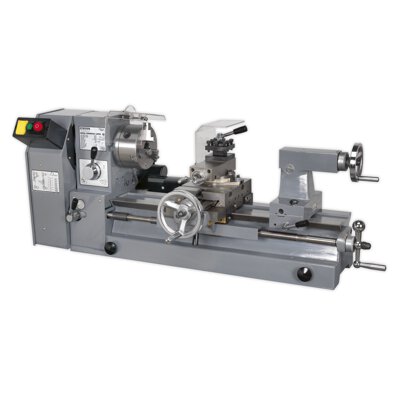

• Quality workshop lathe suitable for a wide range of turning and drilling applications.
• Features power feed for even surface finish and thread cutting.

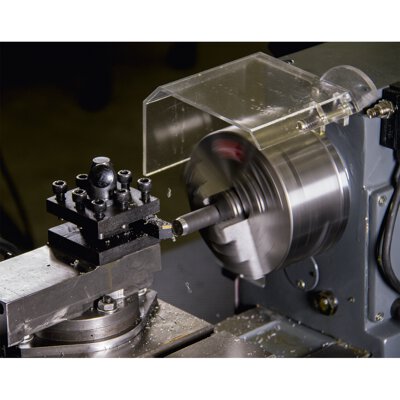

• Four-way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.

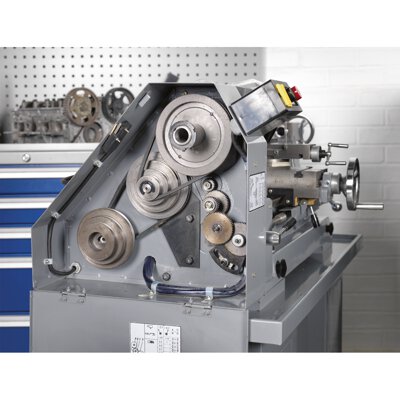

• Powered by 550W motor through six-speed gearbox.
• Incorporates quiet running PTO gearbox with oil bath lubrication for power feed.
• Supplied with three-jaw chuck and dead centre.
• Fitted with no-load voltage release switch.
• Meets Supply of Machinery (Safety) Directives 1992 (and amendments).
• Workshop stand available as an optional extra, order Model No. SM27ST.
Warranty: 1 year
• Features power feed for even surface finish and thread cutting.
• Four-way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.
• Powered by 550W motor through six-speed gearbox.
• Incorporates quiet running PTO gearbox with oil bath lubrication for power feed.
• Supplied with three-jaw chuck and dead centre.
• Fitted with no-load voltage release switch.
• Meets Supply of Machinery (Safety) Directives 1992 (and amendments).
• Workshop stand available as an optional extra, order Model No. SM27ST.
Warranty: 1 year
Product Features
Model No SM27
Brand: Sealey
Nett Weight: 132.90kg
Centre Height Over Table: 150mm
Centre Height Over Saddle: 80mm
Distance Between Centres: 500mm
Spindle Bore: Ø26mm
Speed Range: 160-1600rpm
Head Stock Taper: MT4
Tail Stock Taper: MT3
Tail Stock Travel: 40mm
Screw Cutting:
Metric Pitch Quantity: 14
Metric Pitch Range: 0.5-3mm
Inch Pitch Quantity: 20
Inch Pitch Range: 11-40tpi
Motor Power: 550W
Supply: 230V
Brand: Sealey
Nett Weight: 132.90kg
Centre Height Over Table: 150mm
Centre Height Over Saddle: 80mm
Distance Between Centres: 500mm
Spindle Bore: Ø26mm
Speed Range: 160-1600rpm
Head Stock Taper: MT4
Tail Stock Taper: MT3
Tail Stock Travel: 40mm
Screw Cutting:
Metric Pitch Quantity: 14
Metric Pitch Range: 0.5-3mm
Inch Pitch Quantity: 20
Inch Pitch Range: 11-40tpi
Motor Power: 550W
Supply: 230V
Product Measurements
Height: 0.59 M
Width: 1.12 M
Depth/Length: 0.565 M
Total Volume: 0.373352 Cubic M
Gross Weight: 156 Kg
Weight Plastics: 96
Weight Card Paper: 0
Weight Timber Wood: 27000
Weight Metal Banding: 0
Weight Glass: 0
Width: 1.12 M
Depth/Length: 0.565 M
Total Volume: 0.373352 Cubic M
Gross Weight: 156 Kg
Weight Plastics: 96
Weight Card Paper: 0
Weight Timber Wood: 27000
Weight Metal Banding: 0
Weight Glass: 0
