Mini Lathe & Drilling Machine
| Ratings | None |
| Seller |
On Vacation
|
| Address | 9 & 11, Jalan BRP 1/4, Bukit Rahman Putra, Shah Alam |
| Tags | None |
| Stock Availability | In stock |
| Price |
RM
12,579.90
RM 13,977.70
-10%
|
Brand
SEALEY
SKU
SM2503
Product Description

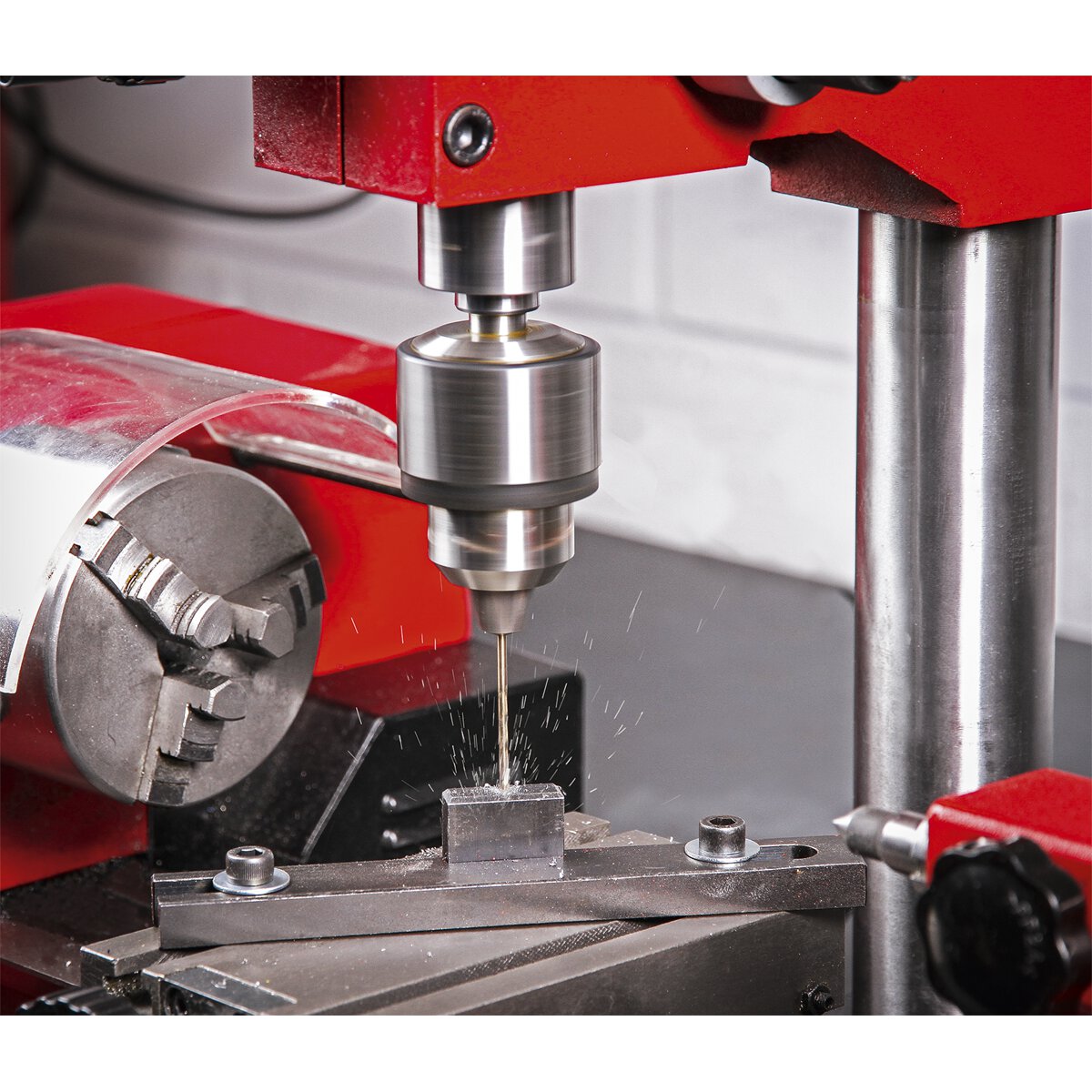

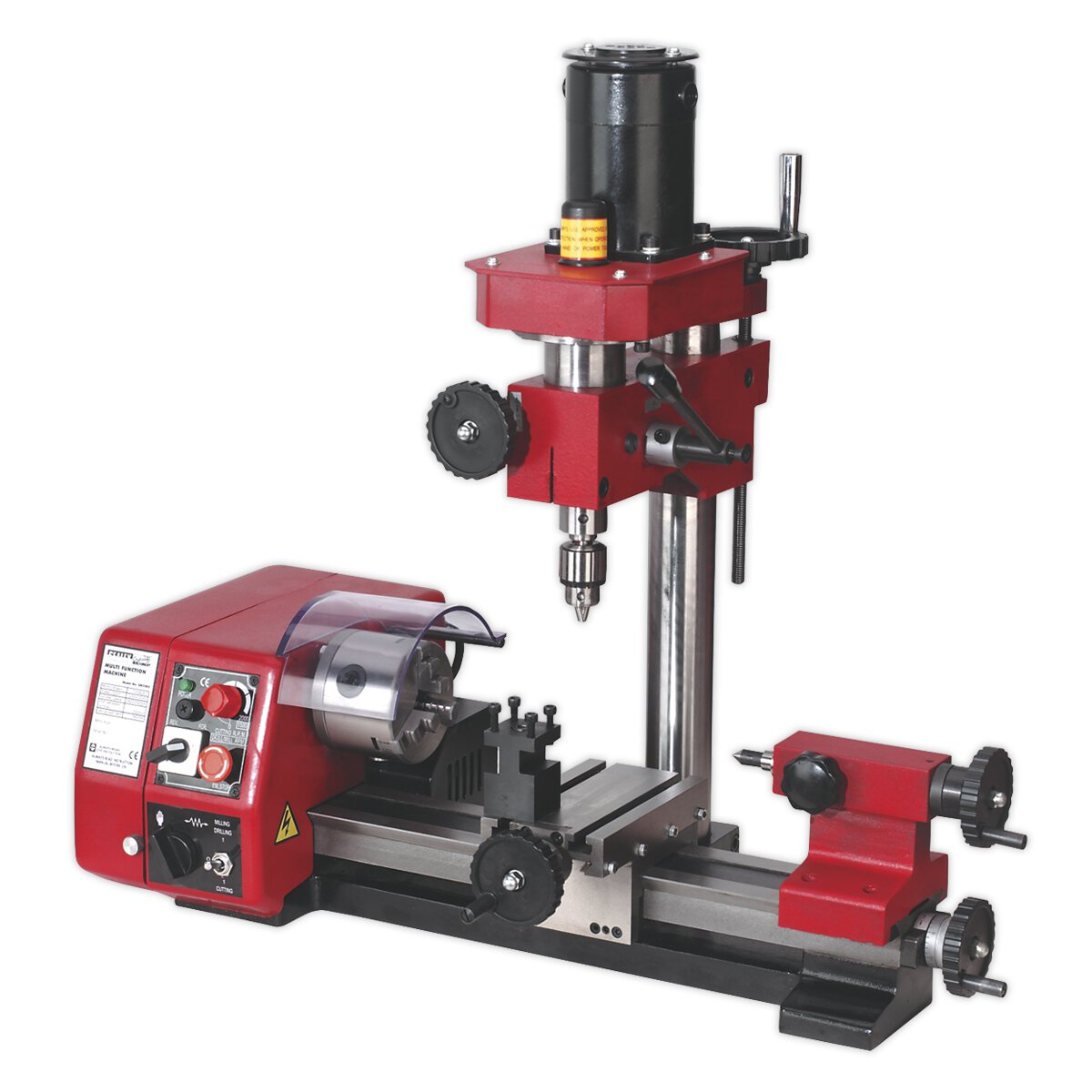

• Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
• Features two 150W motors, one to operate the drill/mill and the other to power the lathe.

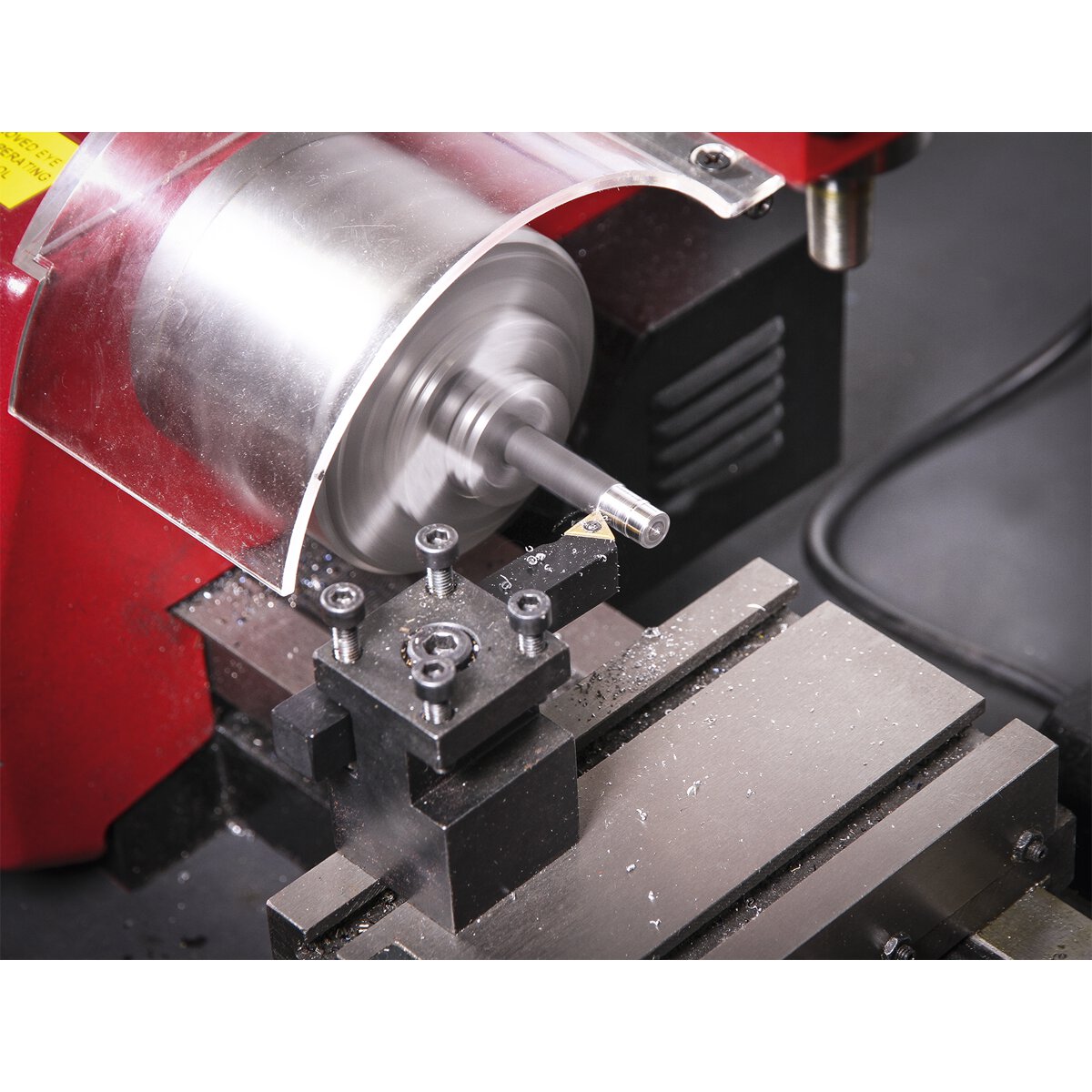

• The lathe cutting feed can be power driven or advanced manually.
• Thread cutting may also be undertaken with the optional thread cutting kit.
• Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
• An optional stand is available, order Model No. SM3002ST.
Warranty: 1 year
• Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
• The lathe cutting feed can be power driven or advanced manually.
• Thread cutting may also be undertaken with the optional thread cutting kit.
• Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
• An optional stand is available, order Model No. SM3002ST.
Warranty: 1 year
Product Features
Model No SM2503
Brand: Sealey
Nett Weight: 39.2kg
Specification - Cutting:
Swing Over Bed: 140mm
Distance Between Centres: 250mm
Spindle Hole Taper: MT2
Cross Slide Travel: 61mm
Tailstock Taper: MT1
Spindle Speed (Variable): 100-2000rpm
Range of Metric Threads: 5 Pitches (0.5-1.25mm)
Specification - Drilling:
Maximum Drilling/Milling Capacity: 10mm
Drilling/Milling Spindle Travel: 30mm
Drilling/Milling Spindle Speed: 100-1300rpm
T-Slot: 8mm
Distance from Spindle to Table: 180mm
Distance from Spindle Centre to Column: 100mm
Motor Power: 2 x 150W - 230V
Weight: 39.2kg
Brand: Sealey
Nett Weight: 39.2kg
Specification - Cutting:
Swing Over Bed: 140mm
Distance Between Centres: 250mm
Spindle Hole Taper: MT2
Cross Slide Travel: 61mm
Tailstock Taper: MT1
Spindle Speed (Variable): 100-2000rpm
Range of Metric Threads: 5 Pitches (0.5-1.25mm)
Specification - Drilling:
Maximum Drilling/Milling Capacity: 10mm
Drilling/Milling Spindle Travel: 30mm
Drilling/Milling Spindle Speed: 100-1300rpm
T-Slot: 8mm
Distance from Spindle to Table: 180mm
Distance from Spindle Centre to Column: 100mm
Motor Power: 2 x 150W - 230V
Weight: 39.2kg
Product Measurements
Height: 0.7 M
Width: 0.43 M
Depth/Length: 0.615 M
Total Volume: 0.185115 Cubic M
Gross Weight: 48.42 Kg
Weight Plastics: 60
Weight Card Paper: 94
Weight Timber Wood: 11632
Weight Metal Banding: 338
Weight Glass: 0
Width: 0.43 M
Depth/Length: 0.615 M
Total Volume: 0.185115 Cubic M
Gross Weight: 48.42 Kg
Weight Plastics: 60
Weight Card Paper: 94
Weight Timber Wood: 11632
Weight Metal Banding: 338
Weight Glass: 0
