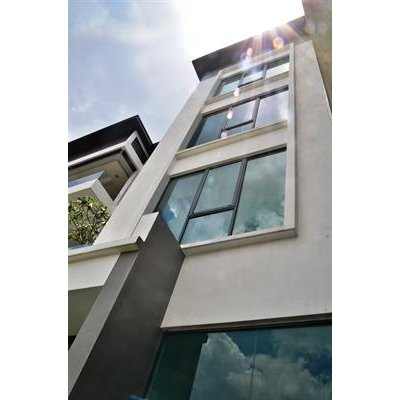

TECHNAL TOPAZE Aluminium Window System - Outward Opening Side Hung Window
Introduction :

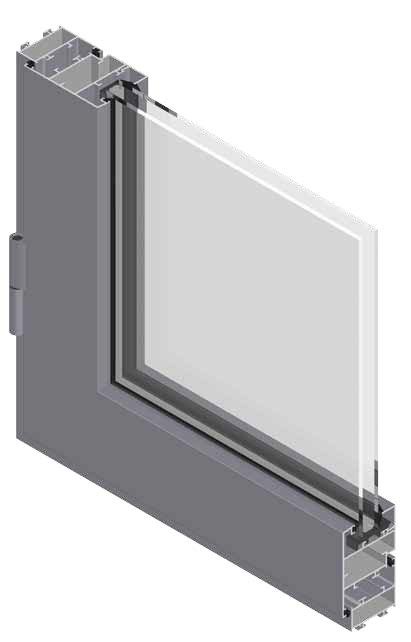

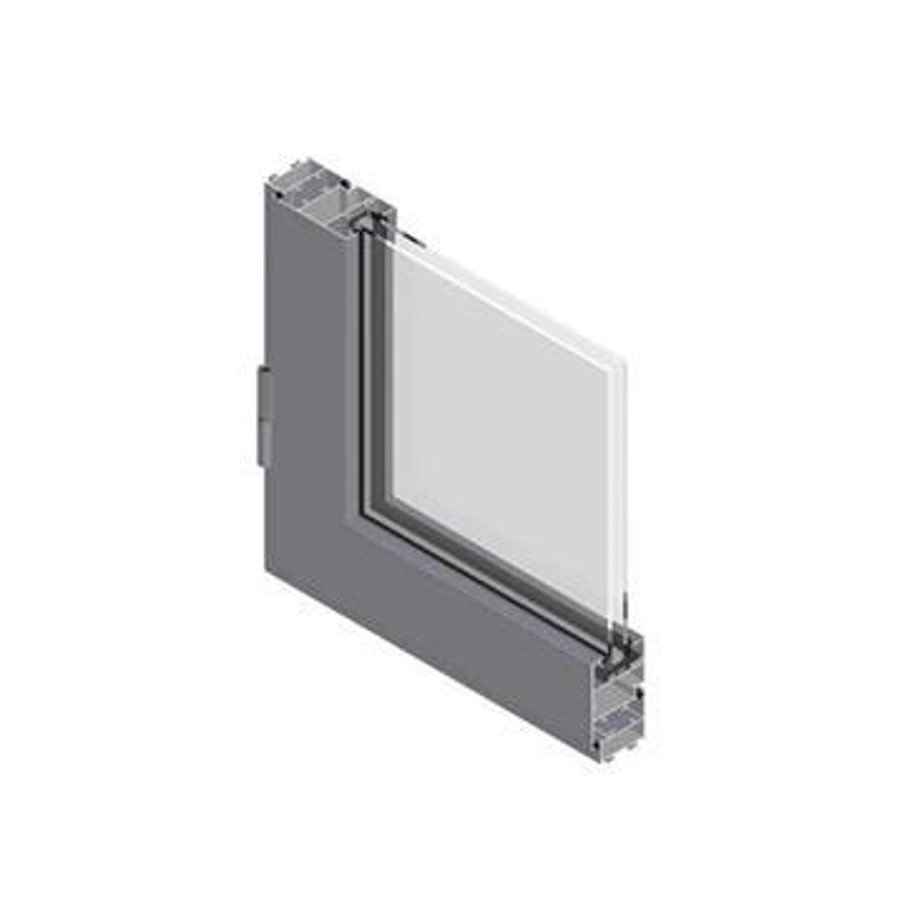

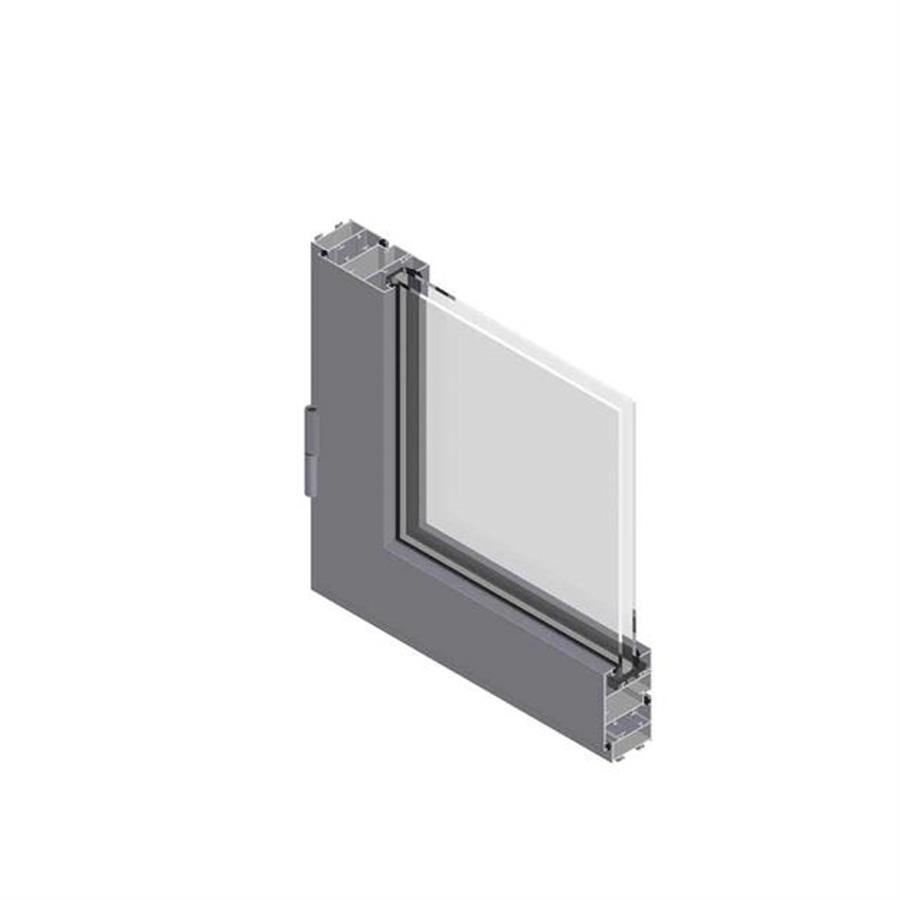

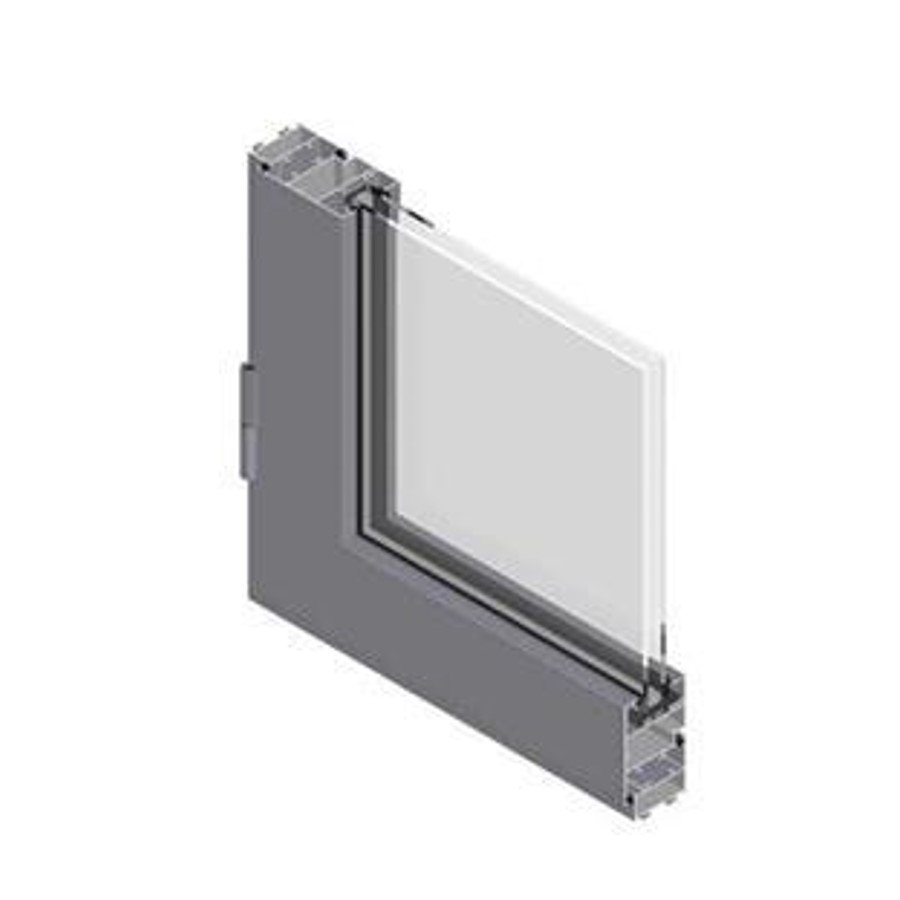

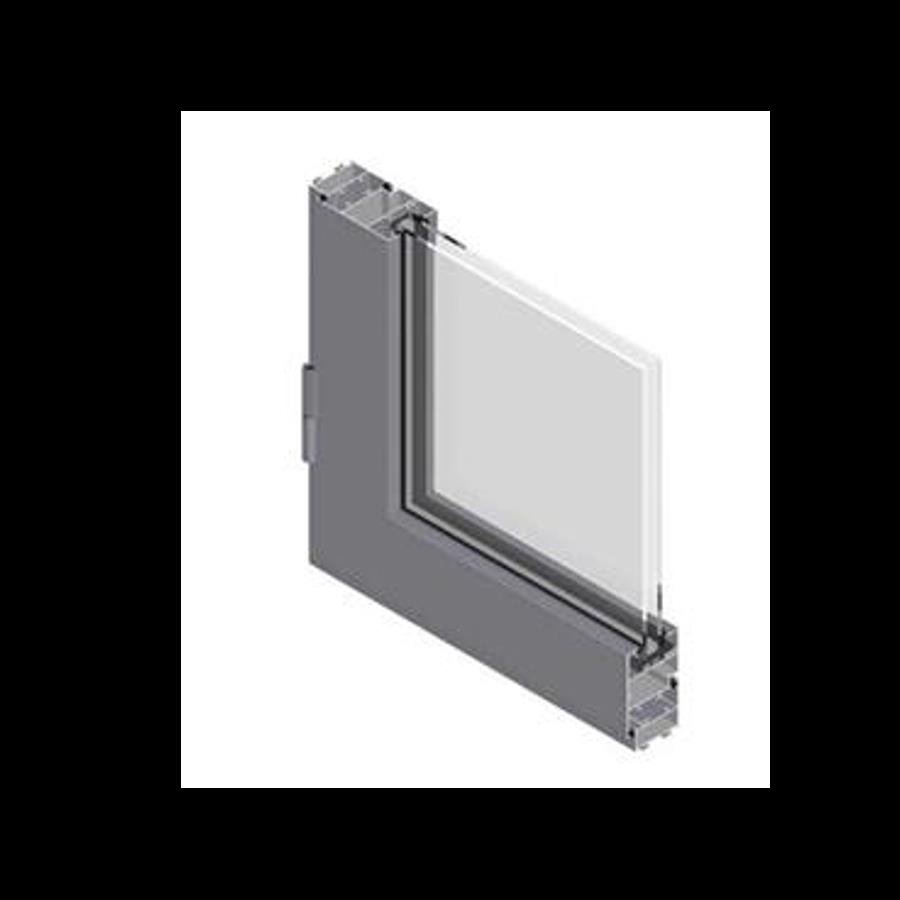

The outward opening TOPAZE casement frame offers a flush design opening sash, straight lines for perfect coherence with the range’s door and sliding systems. Choice of flush or non-flush sashes on the interior.
Variety of applications :
- Windows, patio doors, shutters.
- Single- and double-sash.
- Opening: Projecting top hung or top-hung / Side hung / On hinges or friction stay.
Locking mechanisms :
- Embedded gear box for multi-point locking mechanisms.
- The number of locking points, defined according to the frame dimensions, guarantees uniform weather performance.

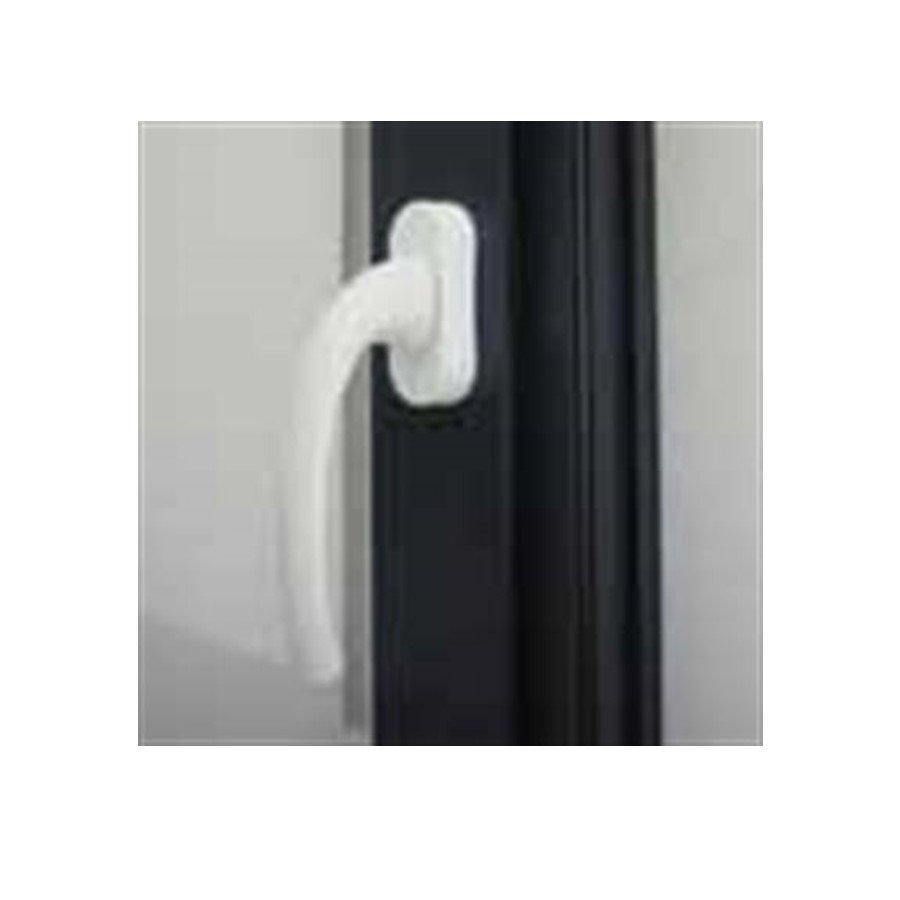

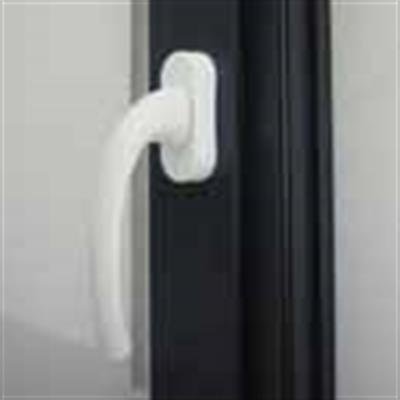

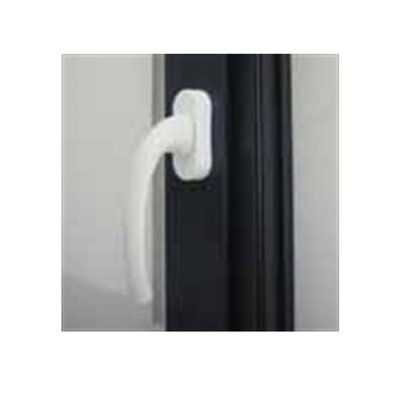

- TECHNAL® design square drive handles with narrow back plate – locking or non-locking.
Glass thickness Capacity : from 6 to 33 mm.
Glass Type : Single Glaze, Double Glaze or Laminated Glass.
Performance :
Weathertightness: tested to European standards EN1026-EN1027-EN12210
- Air permeability: up to 600 Pa(class 4)
- Watertightness: up to 1050 Pa(class 1050A)
- Wind resistance: up to 2000 Pa(class 5)
- Acoustic: Rw (C; Ctr) ≤ 38 dBa (-1; -4), depending on glazing used.
