• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive.

Warranty: 1 year

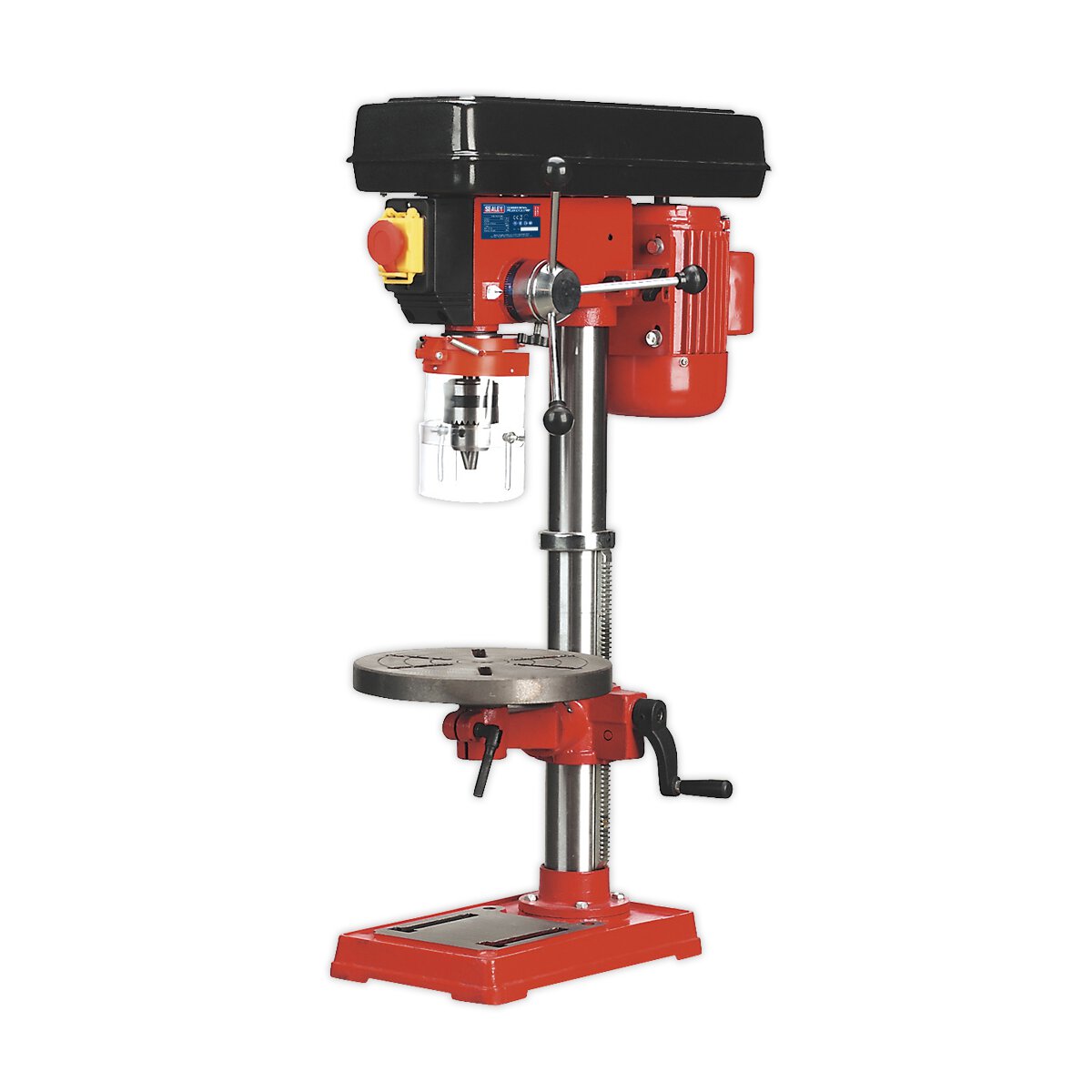

Model No GDM92B
Base Size: 345 x 215mm
Brand: Sealey
Collar Diameter: Ø60mm
Column Diameter: Ø60mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 540mm
Maximum Distance Spindle to Table: 390mm
Motor Power (Start): 220W(370W)
Nett Weight: 32kg
Number of Speeds: 12
Optional Accessories: GDMX/KC - Keyless Chuck 16mm:
Overall Height: 840mm
Speed Range: 210-2580rpm
Spindle Centre to Column: 127mm
Spindle Nose Taper: MT2
Spindle Travel: 60mm
Supply: 230V
Swing: 254mm
Working Base Surface Size: 160 x 180mm
Working Table Surface Size: Ø248mm

Height: 0.185 M
Width: 0.82 M
Depth/Length: 0.44 M
Total Volume: 0.066748 Cubic M

Gross Weight: 39.35 Kg
Weight Plastics: 86
Weight Card Paper: 2960
Weight Timber Wood: 0
Weight Metal Banding: 0
Weight Glass: 0
