• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive.

Warranty: 1 year

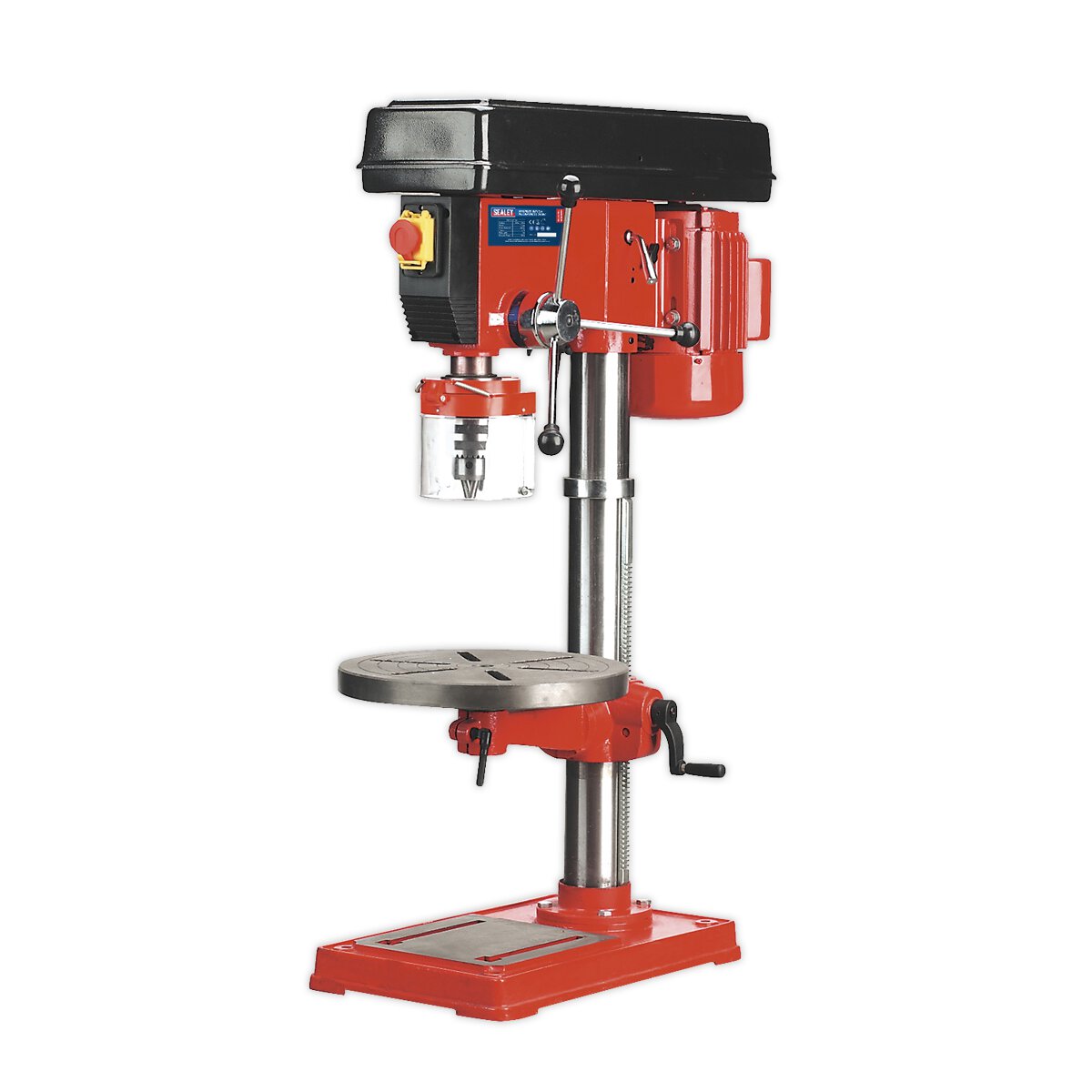

Model No GDM180B
Base Size: 520 x 320mm
Brand: Sealey
Collar Diameter: 75mm
Column Diameter: 80mm
Drilling Capacity (Chuck Size): 20mm
Maximum Distance Spindle to Base: 685mm
Maximum Distance Spindle to Table: 495mm
Motor Power (Start): 550W(750W)
Nett Weight: 70kg
Number of Speeds: 16
Overall Height: 1085mm
Speed Range: 120-3000rpm
Spindle Centre to Column: 216mm
Spindle Nose Taper: MT3
Spindle Travel: 80mm
Supply: 230V
Swing: 432mm
Working Base Surface Size: 240 x 280mm
Working Table Surface Size: Ø355mm

Height: 0.3 M
Width: 0.9 M
Depth/Length: 0.565 M
Total Volume: 0.15255 Cubic M

Gross Weight: 74 Kg
Weight Plastics: 888
Weight Card Paper: 2110
Weight Timber Wood: 0
Weight Metal Banding: 0
Weight Glass: 0
