Description

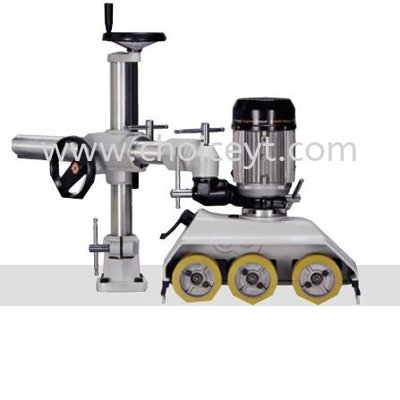

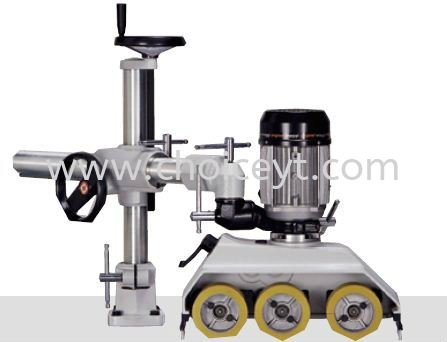

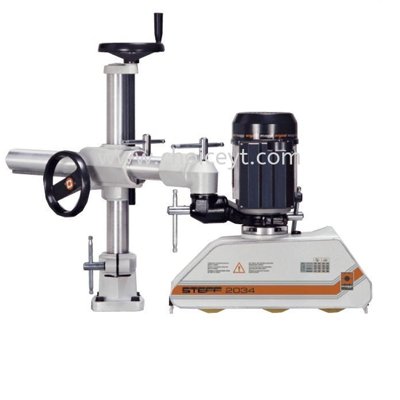

3 rollers – 4 steady speeds back and forward motion.2 speeds are obtained by changing the position of the gears inside the housing, while other 2 speeds result from the switching of the bipolar engine (1400- 2800 r.p.m.)
Motor power enables any kind of feeding.
Resistant and protective electrostatic powder-paint
Interchangeable gears have been sintered, carbonitried and tempered.
Case-hardened and rectified endless screw of the motor shaft enables perfect matching of the bronze aluminium crown wheel (BR/AL UNI 5275) with reducer unit.
The kind of oil we use for the reducer (Mellana 150 IP or similar) ensures unlimited lubrication.
Technical Data
MOTOR POWER 0,7/1 HP
0,52/0,75 KW
FEEDING SPEEDS 4-8-11-22 (50Hz) m/min
ROLLER N. 3
Ø OF ROLLERS 120 mm
ROLLER WIDTH 60 mm
ROLLER SPRING EXCURSION 20 mm
TOTAL NET WEIGHT 58 Kg
TOTAL GROSS WEIGHT 61 Kg
