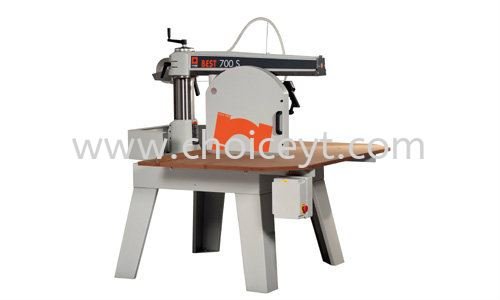

Description
TECHNICAL DATA
Three phase Motor Power 4 (3) Hp (Kw)
Single phase Motor Power 3 (2.2) Hp (Kw)
Motor Speed 2800 r.p.m.
Blade Diameter Ø 350 mm
Blade Bore Diameter Ø 30 mm
Shaft dimension Ø 25x80 mm
Dust chute diameter on blade guard Ø 60 mm
Rear dust chute diameter Ø 100 mm
Table dimensions 1580x2400 mm
Maximum cut width Ø 350 20x1160 mm
Maximum cut width Ø 400 20x1155 mm
Length of cut h max Ø 350 100x1090 mm
Length of cut h max Ø 400 125x1060 mm
Maximum cut depth Ø 350 100 mm
Maximum cut depth Ø 400 125 mm
Max. height of blade from table Ø 350 110 mm
Max. height of blade from table Ø 400 85 mm
Max. cutting heght at 45° Ø 350 Max. 60 mm
Max. cutting heght at 45° Ø 400 80 mm
Max. cutting height arm 45° on right side 20x800 > 100x770 mm
Max. cutting height arm 45° on left side 20x610 > 100x580 mm
Net Weight 285 Kg
Gross Weight 347 Kg
Packing Dimensions 1800x1000x1000 mm
