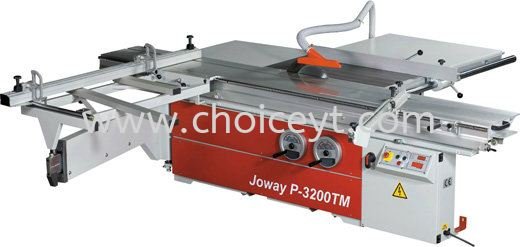

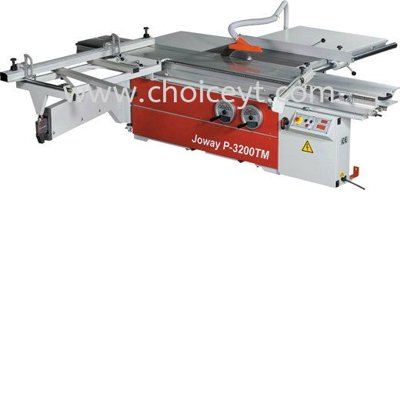

Sliding Table Saw (Jo-Way)-P-3200TM

Technical Data. Standard and optional equipment.

ITEM / MODEL P-2600TM / P-3200TM / P-3800TM
Rectified cast iron fixed table dimension 620*1000
Sliding table dimension 380*2600 / 3200 / 3800
Main saw blade Ø 305 (12") ●
Main saw blade Ø 355 (14") V
Main saw bore Ø 30 ( Ø 25.4 )
Max. cutting height with blade at 90 ° 100
Max. cutting height with blade at 45 ° 70
Main motor power 7.5HP (5.5 kw) ●
Main motor power 10HP (7.5 kw) V
Main blade speed 3000 / 4000 / 5000 / 6000 rpm
Scoring saw blade Ø 120 ●
Scoring saw blade bore Ø 22
Scoring blade motor power 1HP (0.75 kw) ●
Scoring blade speed 8000 rpm ●
Cutting width 1300 mm ●
Cutting width 1500 mm V
Cutting width adjustment Manual
Saw table extension 400 mm ●
Saw table extension 800 mm (CE) V
Mitre fence ●
Blade tilting adjustment Manual (0°~45° )
Main saw height adjustment Manual
Scoring saw height adjustment Manual
Scoring saw + /- direction adjustment Manual
Blade tilting angle digital display ●
Main blade speed digital display ●
Overhead saw guard Simple
Luxurious (opt)
Crosscut fence digital display V
Rip fence digital display V
Rapid clamp V
Tool frame ●
Dust collection system Main chanel 5", Simple 2", Luxurious 3" ●=Standard V=Optional
