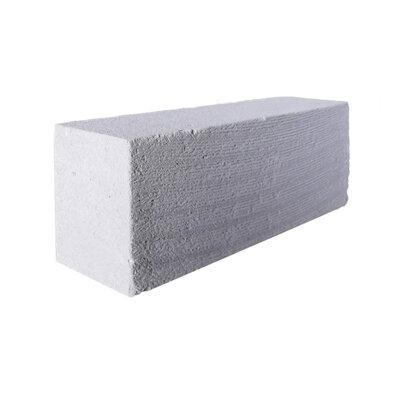

STARKEN AAC BLOCK March 9, 2019 Kee Admin Category: BRICKS Description Description STARKEN AAC STANDARD BLOCK AAC products are made using slurry mix containing cement, sand, lime and aerating agent. The slurry is poured and moulded to form lightweight blocks, panels and lintels upon which are cured in autoclave. The high-pressure steam-curing mechanism in the autoclave facilitates the curing process of the moulded lightweight concrete, producing physically and chemically stable products that weigh about 1/5 of normal concrete. AAC products contain millions of tiny non-connecting air pockets yielding superior thermal insulation property. AAC products are typically installed to form walls, floors and roofs.
Applications:
General internal & external walls
Party, compartment & separating walls
Acoustic & fire-rated walls
Working dimension:

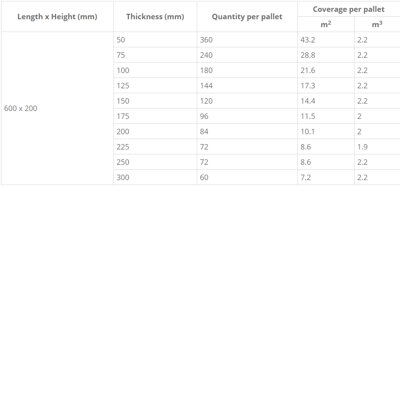

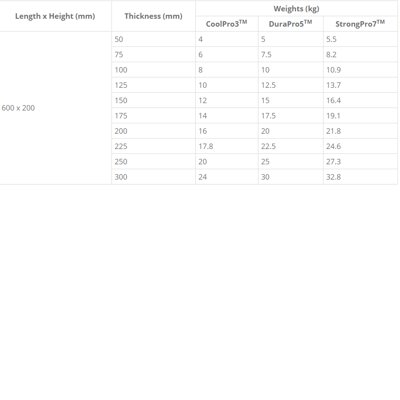

Length x Height (mm) Blocks are available in 600 x 200
COOL PRO 3
Compressiev Strength: 3.5 MPa
Thermal Conductivity: 0.172 W/m.K
Nominal Dry Density: 500 ± 50 kg/m3
Working Density: 700 ± 50 kg/m3
DURA PRO 5
Compressiev Strength: 5.5 MPa
Thermal Conductivity: 0.244 W/m.K
Nominal Dry Density: 600 ± 50 kg/m3
Working Density: 840 ± 50 kg/m3

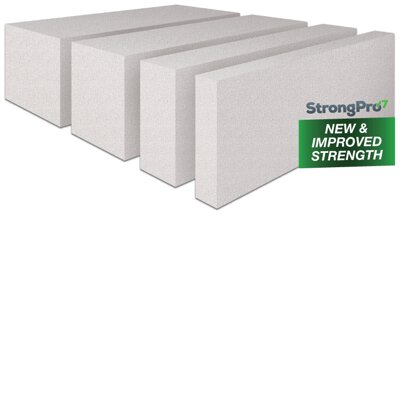

STRONG PRO 7
Compressiev Strength: 7.0 MPa
Thermal Conductivity: 0.244 W/m.K
Nominal Dry Density: 650 ± 50 kg/m3
Working Density: 910 ± 50 kg/m3
Properties:
Modulus of Elasticity 1,500 – 2,500 MPa
Ultimate Tensile Strength 0.44 – 0.55 MPa
Modulus of Rupture 0.45 – 0.55 MPa
