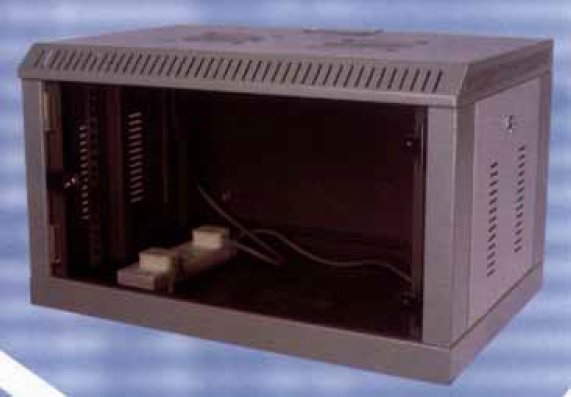

TR-2208 19” Mounting Wall Mount Rack

-Suitable for networking
-Removable of side panels
-Optional for ventilation fan and 2U equipment tray
-Finished in 2-tone grey epoxy powder paint
-Lockable front Perspex Door
-Available from 6U through 15U
-Complete Knock Down System (CKD)
-Standard accessories including –13 AMP 3 Gang Power socket, PMM Mounting Member and M6 x 12mm caged nuts with screws

WIDTH: 600mm, 6U (1U = 44.45mm), OVERALL HIGH: 356mm, USABLE HIGH: 267mm, Nos.of 13AMP Socket: 3, WEIGH DEPTH 390mm: 14kg, WEIGH DEPTH 500MM: 18kg

WIDTH: 600mm, 9U (1U = 44.45mm), OVERALL HIGH: 489mm, USABLE HIGH: 400mm, Nos.of 13AMP Socket: 3, WEIGH DEPTH 390mm: 19kg, WEIGH DEPTH 500MM: 24kg

WIDTH: 600mm, 12U (1U = 44.45mm), OVERALL HIGH: 622mm, USABLE HIGH: 533mm, Nos.of 13AMP Socket: 3, WEIGH DEPTH 390mm: 24kg, WEIGH DEPTH 500MM: 31kg

WIDTH: 600mm, 15U (1U = 44.45mm), OVERALL HIGH: 756mm, USABLE HIGH: 667mm, Nos.of 13AMP Socket: 3, WEIGH DEPTH 390mm: 29kg, WEIGH DEPTH 500MM: 38kg

Special
WIDTH: 600mm, 3U (1U = 44.45mm), OVERALL HIGH: 154mm, USABLE HIGH: 134mm, Nos.of 13AMP Socket: 3, WEIGH DEPTH 390mm: -, WEIGH DEPTH 500MM: 8kg
