Transflex Expansion Joint 274×41×1830 mm
RM
1,400.00
Out of stock
Description
Rubber bridge expansion joints are mainly made of rubber, steel plate and angle iron. Steel plates are set in the rubber bridge expansion to strengthen the bearing capacity and they can slide freely along the angle iron to meet the expansion deformation of main grid.
Because of the excellent sealability and shock-absorbing effect of rubber, rubber bridge expansion joints do well in proofing water and reducing noise. The elasticity of rubber plates and its shear deformation in the telescopic channel helps the whole device to realize telescopic motion.
This is a piece of rubber bridge expansion joint.

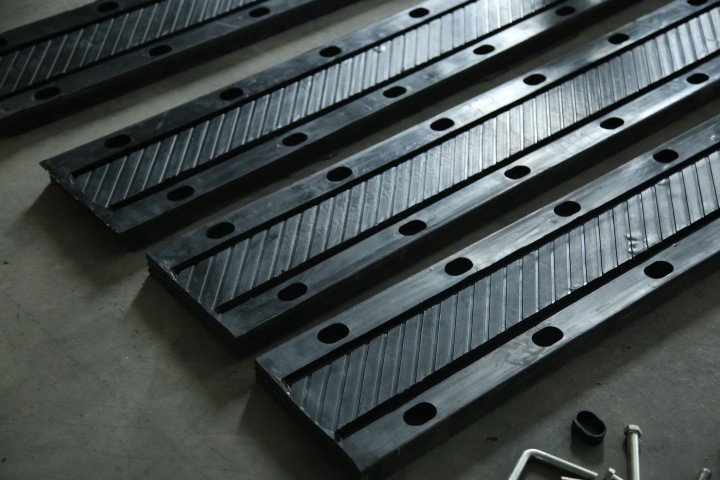

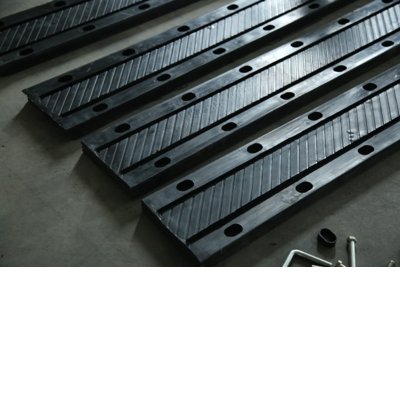

There are four pieces of rubber bridge expansion joints.
RBEJ-2: Rubber bridge expansion joints are mainly made of rubber, steel plate and angle iron.
Structure
Rubber bridge expansion joints are consisted of rubber, reinforce steel plate, ranura, sealing block, fitting portion, nut plate, kidney-shaped cap, nuts and bolt.
A structure diagram of rubber bridge expansion joint.
RBEJ-3: The structure diagram of rubber bridge expansion joints with fine parts can show the details clearly.
Specification
Material: rubber, steel plate and angle iron.
Table 1: Specification of Rubber Bridge Expansion Joint
Model Movement
(mm) Module length
(mm) Module depth
(mm) Weight
(kg/m)
30 ± 15 2000 33 18
50 ± 25 2000 43 25
80 ± 40 2000 46 34
100 ± 50 2000 54 45
160 ± 80 2000 84 88
200 ± 100 2000 71 135
330 ± 165 1000 100 280
Accessories:
Kidney-shaped cap.
Curved screw bolt.
Ring.
There are two kidney shaped caps.

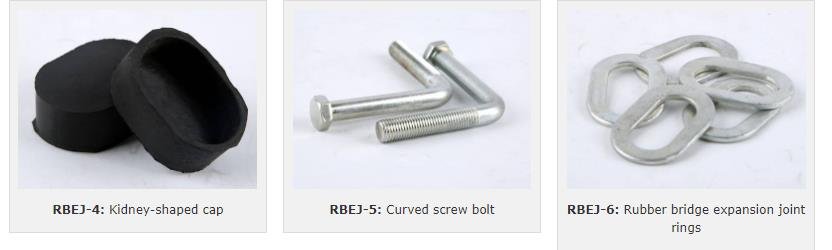

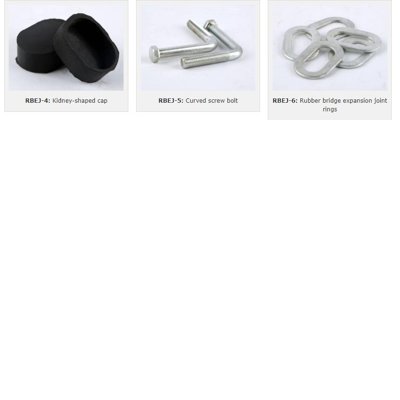

RBEJ-4: Kidney-shaped cap
There are two curved screw bolts.
RBEJ-5: Curved screw bolt
There are many rings used in rubber bridge expansion joint
RBEJ-6: Rubber bridge expansion joint rings
Features
Rubber bridge expansion joints are made of prime-quality rubber, have anti-aging and have a long service life.
Wear resistance, corrosion resistance.
Rubber bridge expansion joints can withstand the weight of vehicles and pedestrians.
During installation, bolt holes on the bottom and each junction are filled with adhesion agent which makes the whole rubber bridge expansion joints be highly water-resistant.
Rubber bridge expansion joints can ensure vehicles runs smoothly and no noise.
Application
Rubber bridge expansion joints for movements of up to 60 mm apply to normal bridges. Compared with expressway, rubber bridge expansion joints are more suitable for being installed on the flyovers. They are also good choices for building new bridges.
A people is install the rubber bridge expansion joint in the expressway.

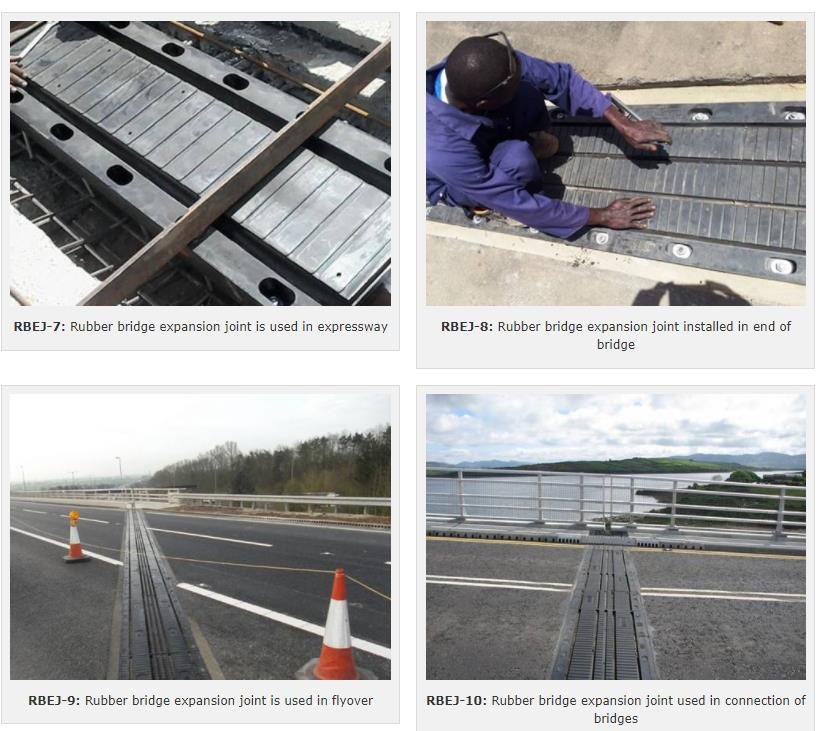

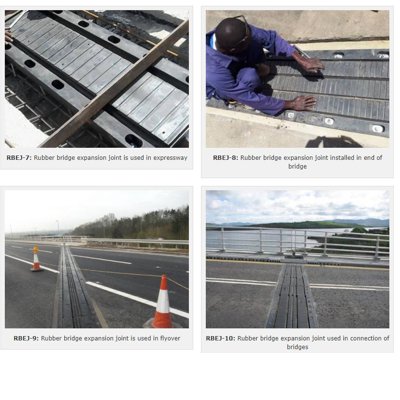

RBEJ-7: Rubber bridge expansion joint is used in expressway
A people is installing the rubber bridge expansion joint in bridge.
RBEJ-8: Rubber bridge expansion joint installed in end of bridge
This is a flyover that is being built with rubber bridge expansion joint.
RBEJ-9: Rubber bridge expansion joint is used in flyover
The bridge with rubber bridge expansion joint is over the river.
RBEJ-10: Rubber bridge expansion joint used in connection of bridges
Different bridge road airport road Expansion Joint, as long we make mold. Email me TradingNancy@outlook.com or call me at +86 15731809416
Because of the excellent sealability and shock-absorbing effect of rubber, rubber bridge expansion joints do well in proofing water and reducing noise. The elasticity of rubber plates and its shear deformation in the telescopic channel helps the whole device to realize telescopic motion.
This is a piece of rubber bridge expansion joint.
There are four pieces of rubber bridge expansion joints.
RBEJ-2: Rubber bridge expansion joints are mainly made of rubber, steel plate and angle iron.
Structure
Rubber bridge expansion joints are consisted of rubber, reinforce steel plate, ranura, sealing block, fitting portion, nut plate, kidney-shaped cap, nuts and bolt.

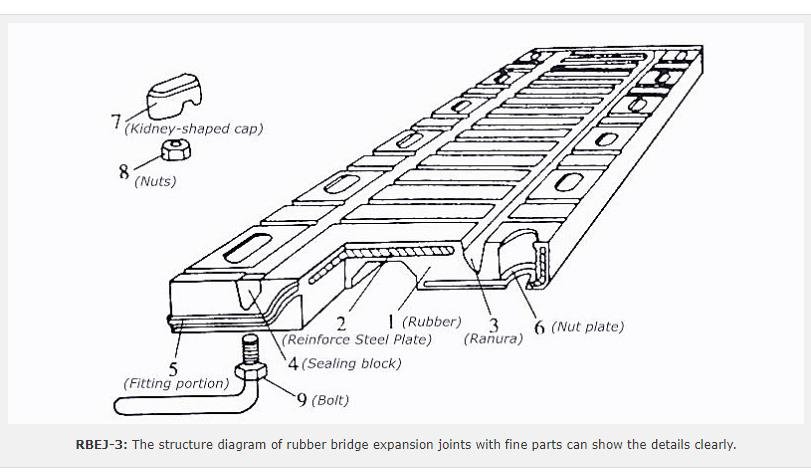

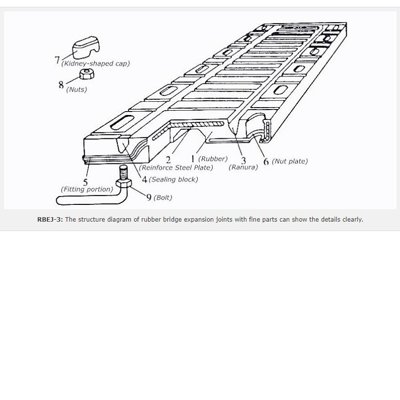

A structure diagram of rubber bridge expansion joint.
